C78ENTM50.11

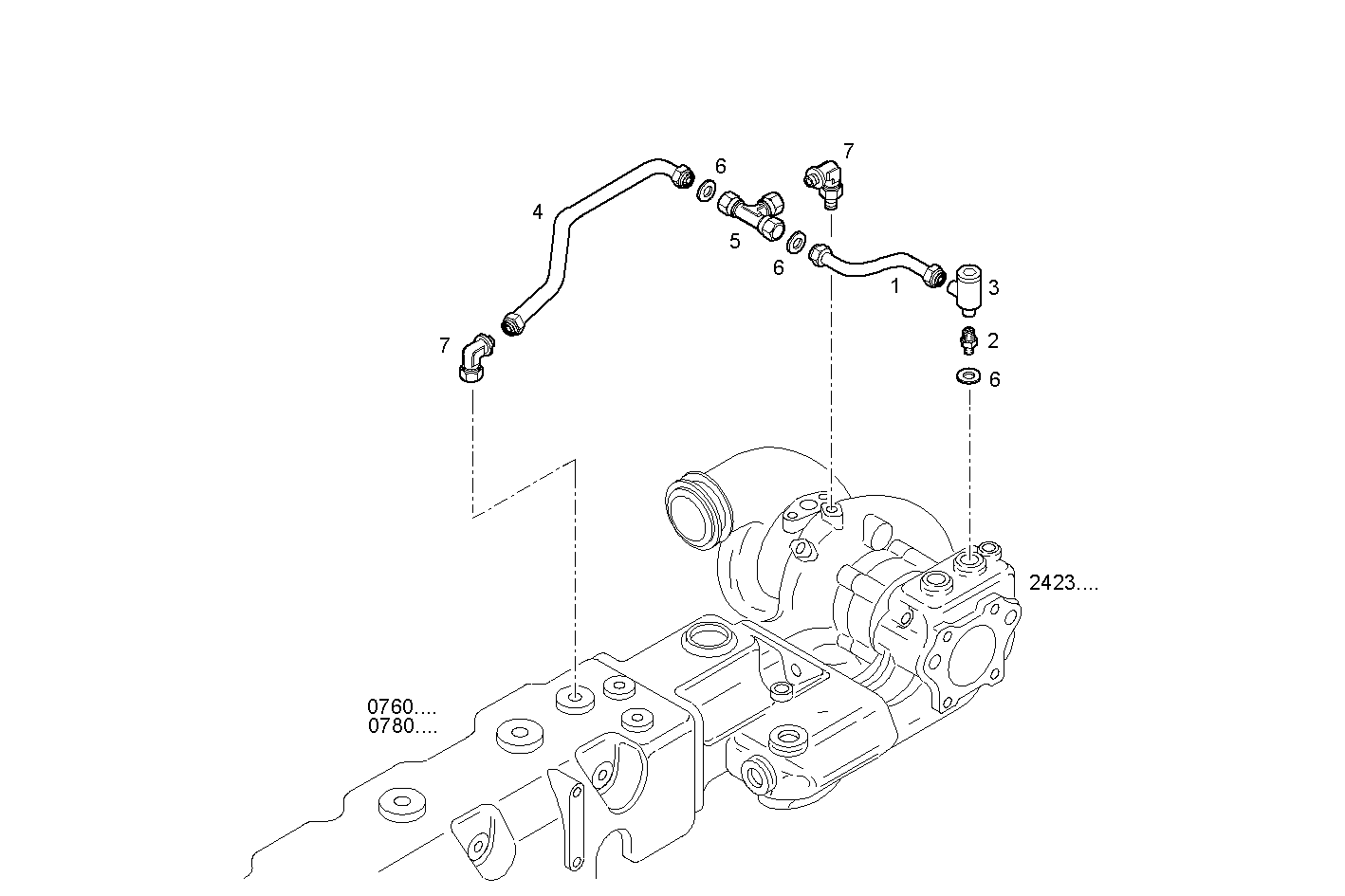

3248.008 TURBO WATER OUTLET PIPE
| Item | Part number | Description |
|---|---|---|
| 1 | 8031334 | WATER PIPE |
| 2 | 4935200 | PIPE SOCKET M22X1,5/M16X1,5 |
| 3 | 8030711 | PIPE SOCKET M18X1,5/M16X1,5 |
| 4 | 8031347 | WATER PIPE |
| 5 | 16581214 | T-COUPLING |
| 6 | 17750985 | WASHER Ø22X28X1,5 MM |
| 7 | 98433191 | PIPE SOCKET [from 07-92] |
