C78ENTM50.11

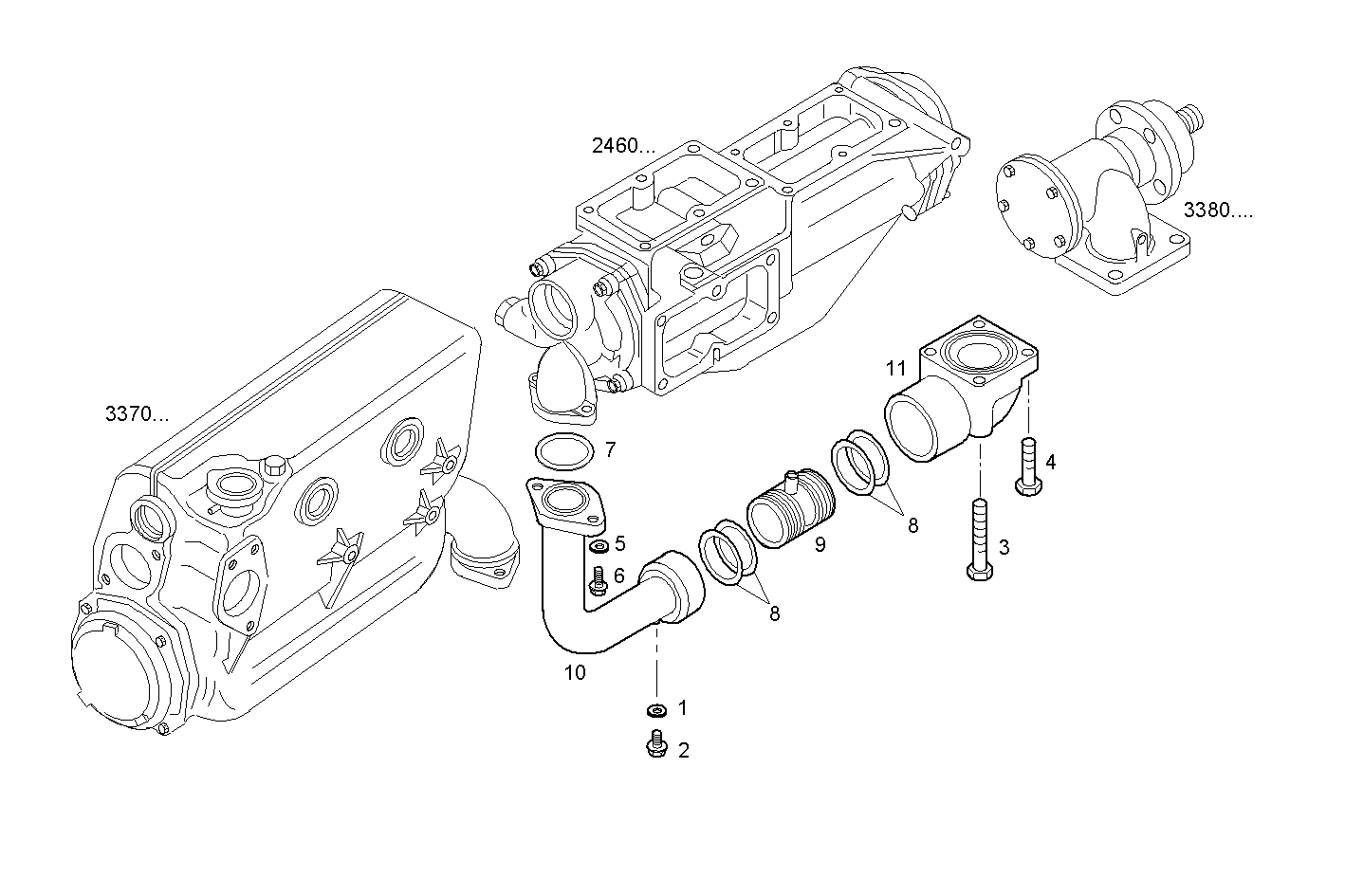

3390.013 SEA WATER LINES
| Item | Part number | Description |
|---|---|---|
| 1 | 99489016 | SEAL GASKET Ø10X17 MM SP =1,5 |
| 2 | 16992140 | PLUG M10X1 |
| 3 | 16592925 | HEXAGON BOLT M10X80 MM |
| 4 | 16587124 | HEXAGON BOLT M10X25 MM |
| 5 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 6 | 16605624 | HEXAGON BOLT M8X25 MM (8.8) |
| 7 | 17289881 | O-RING Ø50,3 MM SP=3,5 MM |
| 8 | 17289981 | O-RING Ø53,57X3,53 MM |
| 9 | 8029811 | SPACING BAR |
| 10 | 8031113 | WATER PIPE |
| 11 | 8030563 | WATER PIPE OUTLET. |
