C78ENTM50.11

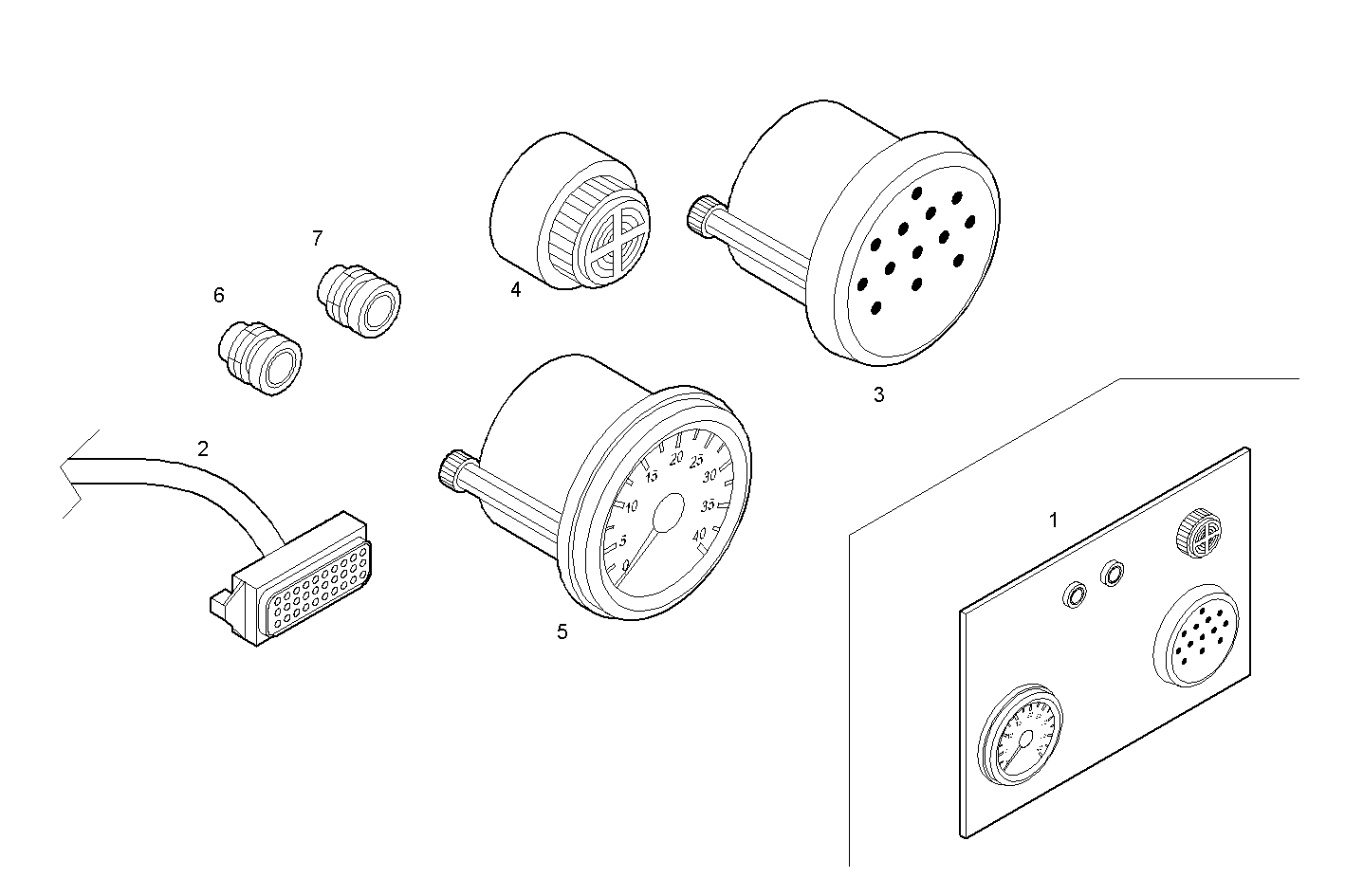

A38840503 ELECTRIC INSTRUMENTS PANEL - fly 12V-24V analog. + lead ext. 7 mt.

Iveco/FPT ELECTRIC INSTRUMENTS PANEL

Item Part number Description
1 8036198 CONTROL BOARD ASSY
2 8035993 EXTENSION L=7000 MM
3 8034892 WARNING LIGHT
4 8035166 ACOUSTIC HORN
5 8036197 REVOLUTION COUNTER
6 8036409 PUSH BUTTON BLACK COL.
7 8036411 PUSH BUTTON RED
