C78ENTM50.11

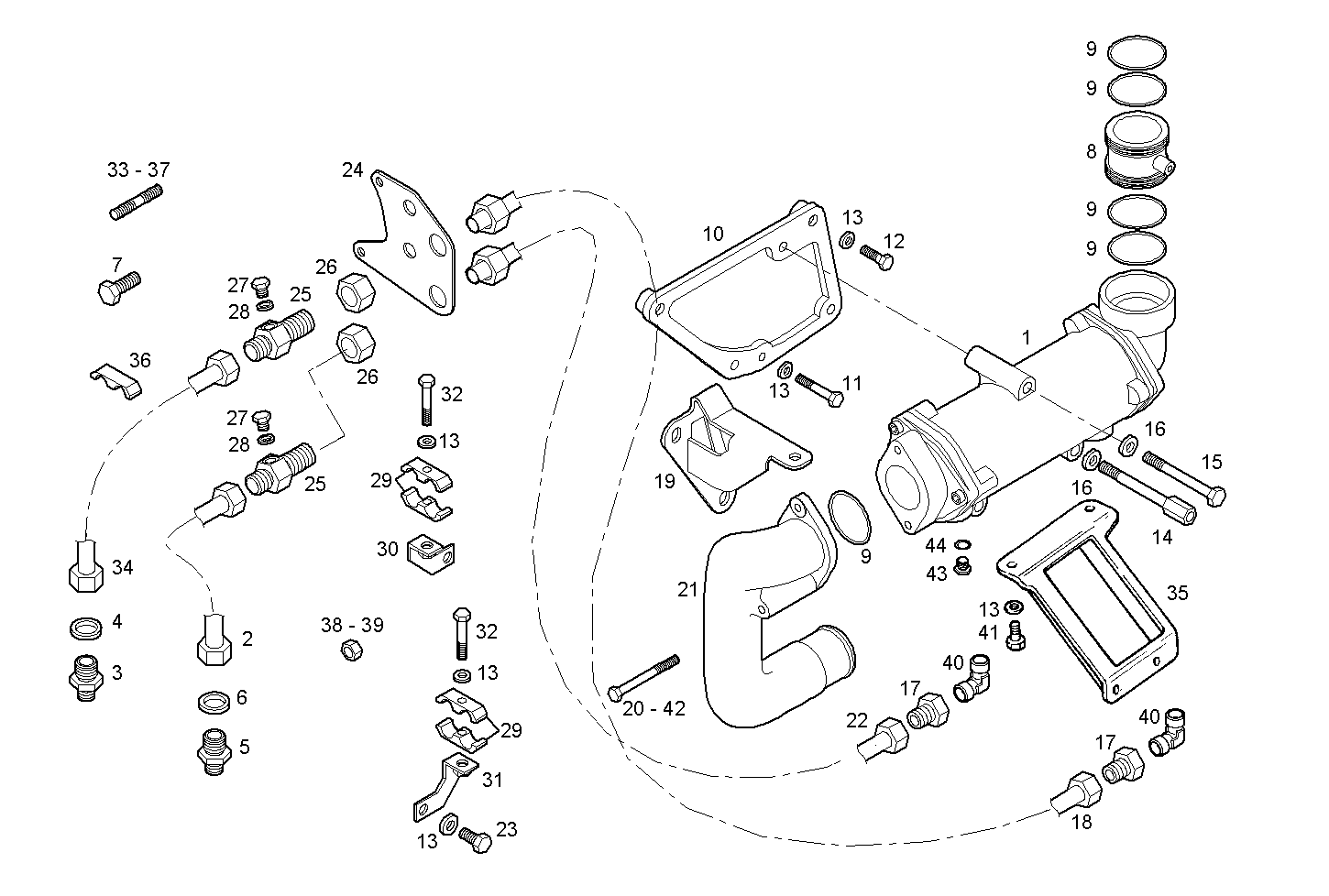

A51108502/02 MARINE GEAR TWIN DISC MG 5075 A - ratio 2,05:1

Iveco/FPT MARINE GEAR TWIN DISC MG 5075 A

Item Part number Description
1 8029435 OIL/WATER HEAT EXCHANGER ASSY
2 8031908 OIL HOSE
3 8011383 PIPE SOCKET
4 99489020 SEAL GASKET Ø18X26 MM SP=1,5 MM
5 4935465 PIPE SOCKET
6 99489019 WASHER Ø16X24 MM SP=1,5 MM
7 17458134 SCREW M12X1,75X25 MM
8 8029811 SPACING BAR
9 17289981 O-RING Ø53,57X3,53 MM
10 8030394 RETAINER
11 16605824 HEXAGON BOLT M8X35 MM
12 16605524 HEXAGON BOLT M8X20 MM
13 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
14 8030473 SCREW
15 16608724 HEXAGON BOLT M10X90 MM
16 17090174 SPRING WASHER Ø10X20 MM
17 8011138 PIPE SOCKET 1/2''/M16X1,5
18 8032362 DELIVERY LINE
19 8029421 RETAINER
20 16607424 SCREW M10X16
21 8032259 PIPE
22 8032363 OIL LINE
23 16607524 HEXAGON BOLT M10X1,5X20 MM (8.8)
24 8032349 RETAINER
25 8032220 PIPE SOCKET
26 16509011 NUT M22X1,5X7 MM
27 11903140 PLUG M10X1,25
28 99489016 SEAL GASKET Ø10X17 MM SP =1,5
29 8010505 CLAMP Ø16 MM
30 8033495 RETAINER
31 8032187 RETAINER
32 16605924 SCREW M8X40 MM
33 17368624 STUD M10X1,5X25 MM
34 8100965 OIL HOSE
35 8029420 RETAINER
36 8032246 SPRING CLAMP
37 17368224 STUD M10X40 MM
38 16508811 NUT M16X1,5
39 17038121 HEXAGON NUT M10
40 8034521 SWIVEL COUPLING
41 16605670 SCREW M8X25 MM
42 16606670 HEXAGON BOLT
43 4595833 THREADED PLUG M20X1,5
44 99489021 WASHER Ø20X28 MM SP=1,5 MM
