C78ENTM50.11A001

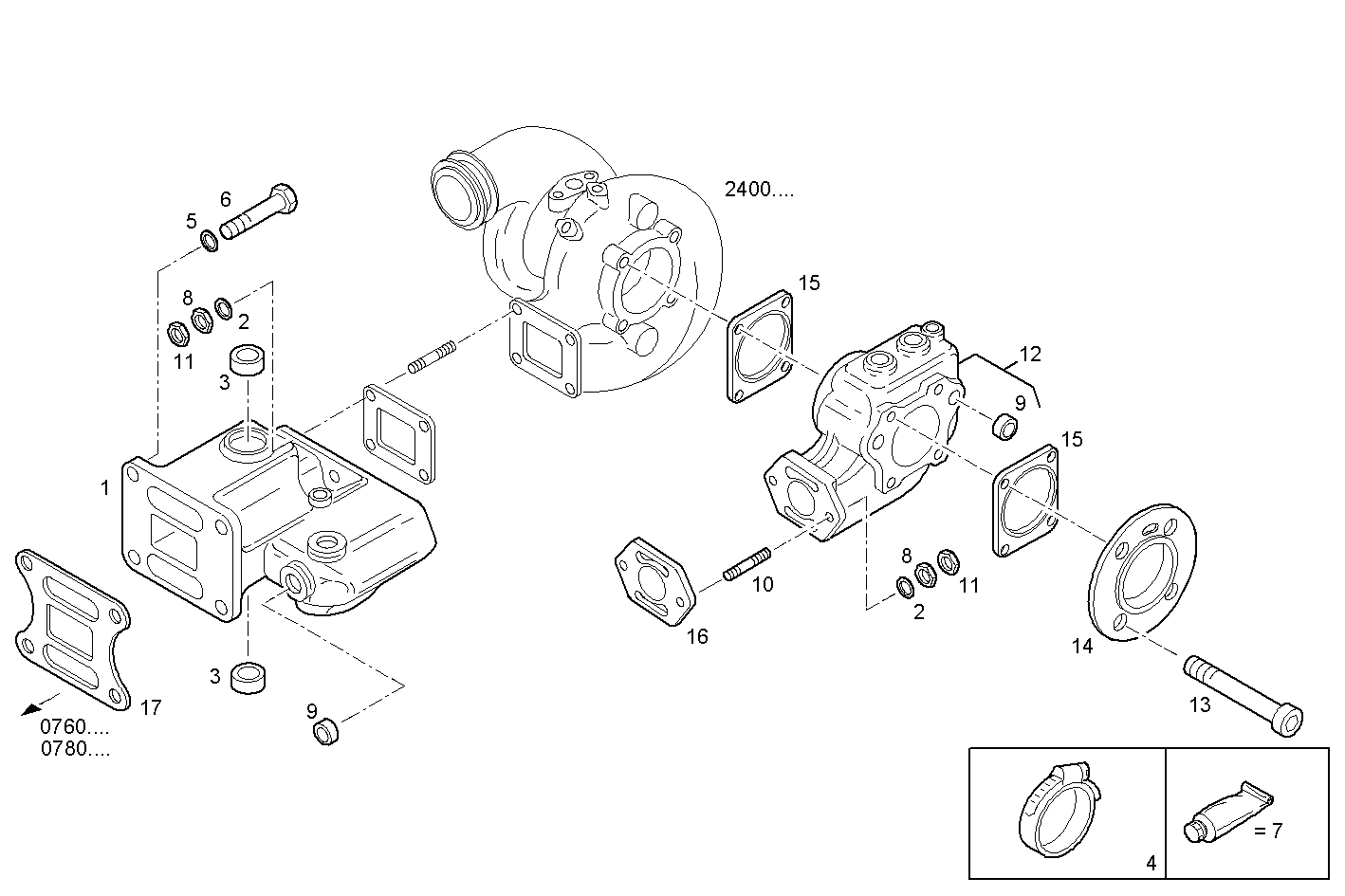

2423.040 AIR LINES
| Item |
Part number |
Description |
|
1 |
8030401 |
MARINE EXHAUST PIPE ASSY |
|
2 |
16665604 |
WASHER Ø10X20 MM |
|
3 |
16991170 |
LOCK PLUG Ø36 MM |
|
4 |
504064329 |
CLIP |
|
5 |
17095224 |
WASHER Ø12X20 MM |
|
6 |
17458334 |
HEXAGON BOLT |
|
7 |
2992695 |
ADHESIVE/STICKER LOCTITE |
|
8 |
4927248 |
NUT M10X1,25 |
|
9 |
14282170 |
LOCK PLUG Ø20 MM |
|
10 |
500314985 |
STUD M10X1,25 - M10X1,5 |
|
11 |
8100961 |
NUT M10X1,25 |
|
12 |
8030437 |
EXHAUST COOL. ELBOW ASSY |
|
13 |
8030470 |
SCREW M10X120 |
|
14 |
8030472 |
FLANGE |
|
15 |
8030905 |
GASKET |
|
16 |
8032732 |
GASKET |
|
17 |
8032873 |
GASKET |
