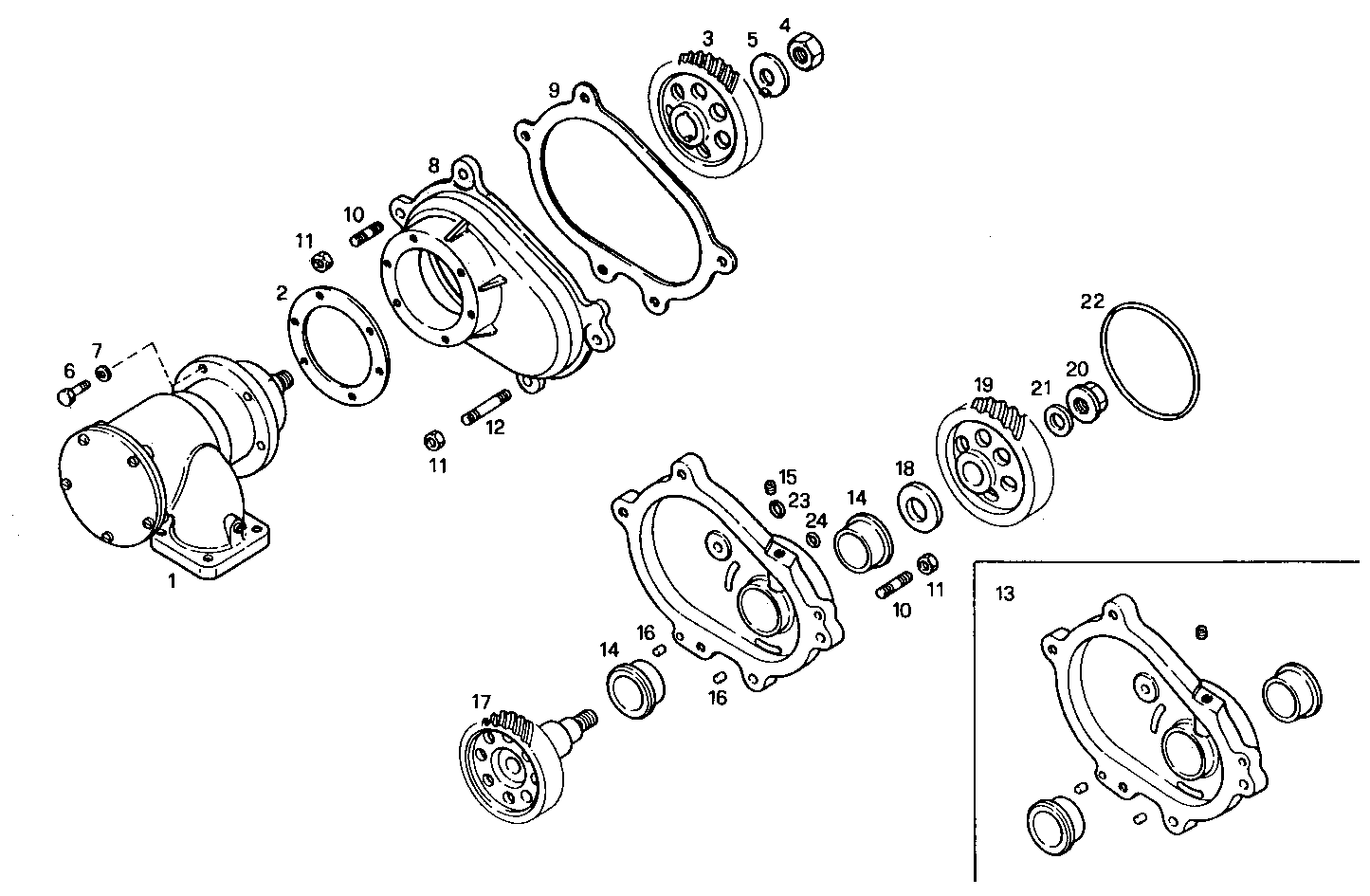

3380.033/01 SEA WATER PUMP - JABSCO

Iveco/FPT SEA WATER PUMP

Item Part number Description
1 8112445 SEA WATER PUMP ASSY JABSCO
2 8008952 GASKET
3 8027848 GEAR
4 17039221 NUT M18X1,5
5 8027036 LOCKING PLATE
6 16605724 SCREW M8X1,25X30
7 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
8 8027846 COVER
9 8027849 GASKET
10 16760524 STUD M12X30
11 17044921 HEXAGON NUT M12
12 16761124 STUD
13 8030460 SUPPORT ASSY
14 18127270 DRIVE BEARING
15 98472270 THREADED PLUG
16 17275410 DOWEL PIN Ø8 MM
17 8027847 GEAR
18 500351319 WASHER
19 500351009 GEAR
20 17046231 NUT M20
21 17096024 WASHER
22 17292281 O-RING Ø126,59 MM SP=3,53 MM
23 17281381 O-RING Ø9,19 MM [FROM TO # 62977]
24 17278181 O-RING [FROM # 50368]
