C78ENTM50.11A001

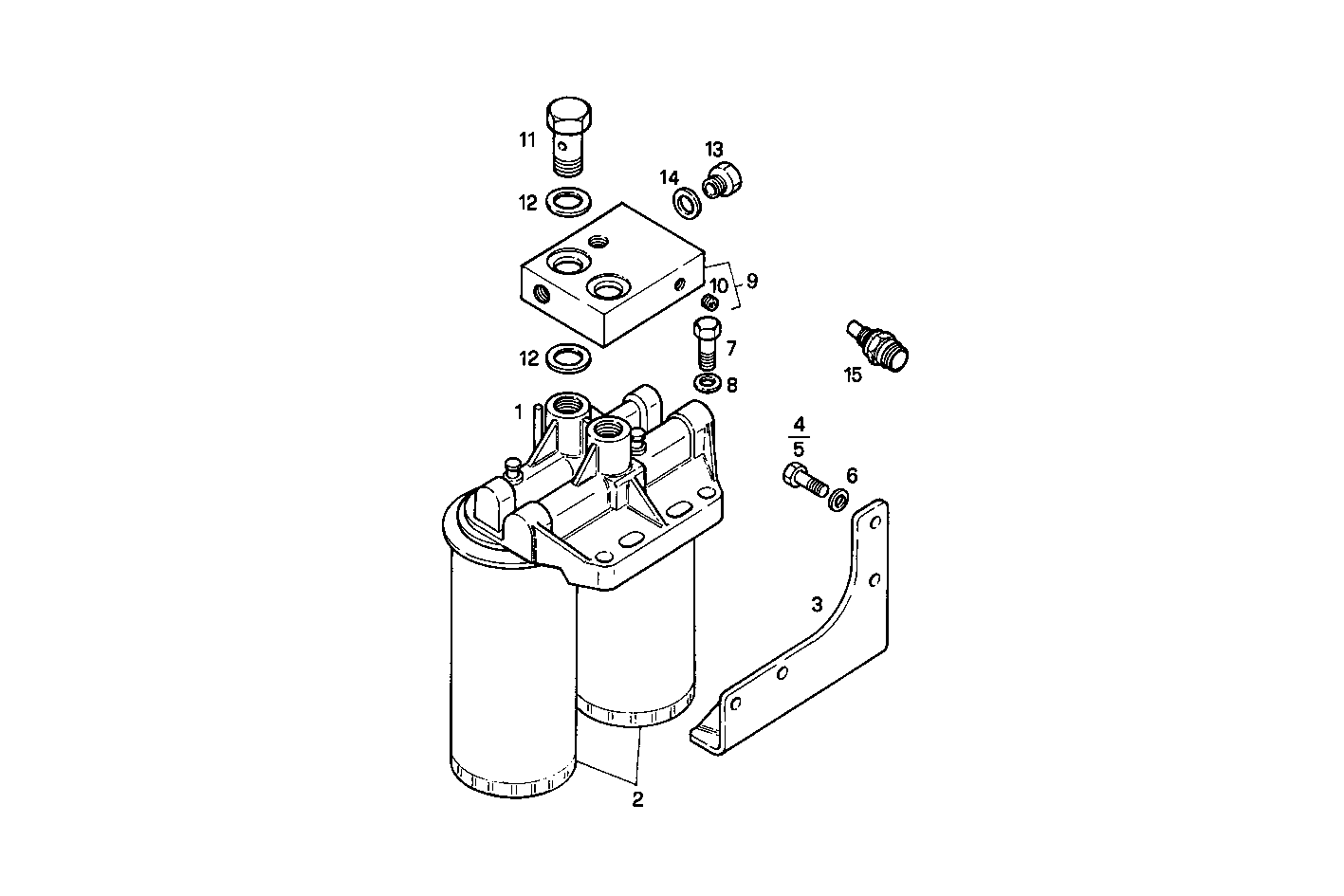

A15010501/01 DOUBLE FUEL FILTER

Iveco/FPT DOUBLE FUEL FILTER

Item Part number Description
1 8032294 OIL FILTER SUPPORT ASSY
2 2991585 FUEL FILTER ELEM.
3 8030817 RETAINER
4 16605424 SCREW M8X16 MM (8.8)
5 16605924 SCREW M8X40 MM
6 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
7 16610124 HEXAGON BOLT M12X40 MM
8 17091074 WASHER Ø12X24X2,8 MM
9 8032305 CHOCK ASSY
10 17318650 PLUG M10X1,25
11 4864085 SCREW CONNECTOR M18X1,5
12 98474311 SEAL GASKET Ø18X26 MM
13 8032295 PIPE SOCKET M16X1,5/M14X1,5
14 99489018 SEAL GASKET Ø14X22 MM SP=1,5 MM
15 500346074 TRANSMITTER Pressure
