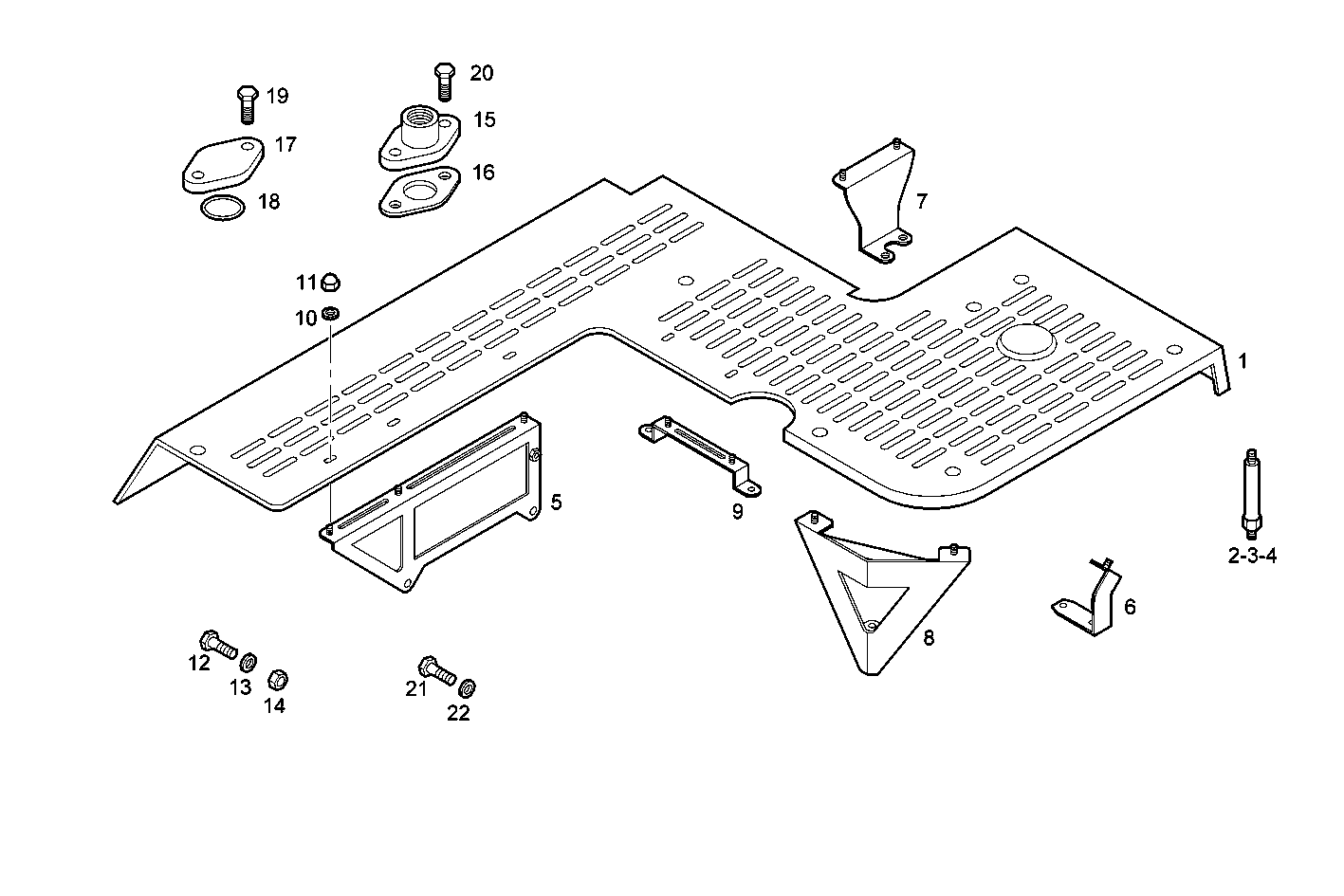

| Item |
Part number |
Description |
|
1 |
8031255 |
PROTECTION |
|
2 |
8031262 |
SPACING BAR |
|
3 |
8037647 |
SPACING BAR |
|
4 |
8031264 |
SPACING BAR |
|
5 |
8031593 |
RETAINER |
|
6 |
8032218 |
RETAINER |
|
7 |
8032231 |
RETAINER |
|
8 |
8032232 |
RETAINER |
|
9 |
8032261 |
RETAINER |
|
10 |
17800374 |
SPRING WASHER Ø6X12 MM |
|
11 |
17787270 |
HEXAGON NUT M6 |
|
12 |
16605424 |
SCREW M8X16 MM (8.8) |
|
13 |
17089474 |
SPRING WASHER Ø8X16 MM SP=1,4 MM |
|
14 |
17037821 |
HEXAGON NUT M6X1 |
|
15 |
4764795 |
THREADED UNION |
|
16 |
98415922 |
FLAT ENGINE GASKET |
|
17 |
8032550 |
FLANGE |
|
18 |
17282081 |
O-RING Ø20,2 MM SP=2,62 MM |
|
19 |
16606324 |
HEXAGON BOLT M8X60 MM |
|
20 |
16605624 |
HEXAGON BOLT M8X25 MM (8.8) |
|
21 |
16603624 |
HEXAGON BOLT M6X16 MM (8.8) |
|
22 |
17088774 |
WASHER Ø6 MM |
