C78ENTM55.10

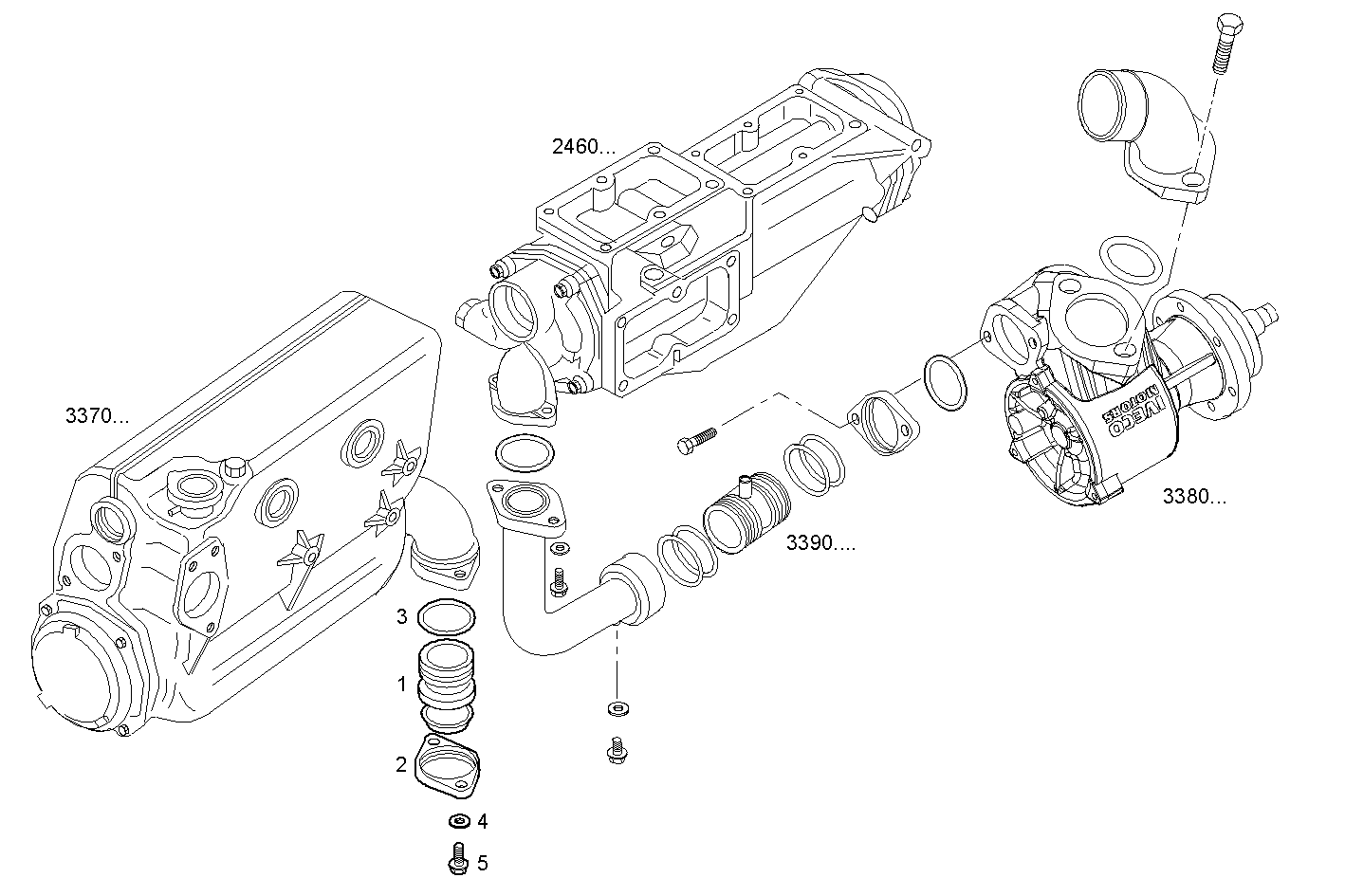

3390.018 SEA WATER LINES
| Item | Part number | Description |
|---|---|---|
| 1 | 8031218 | WATER PIPE |
| 2 | 8022237 | FLANGE |
| 3 | 17289881 | O-RING Ø50,3 MM SP=3,5 MM |
| 4 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 5 | 16605670 | SCREW M8X25 MM |
