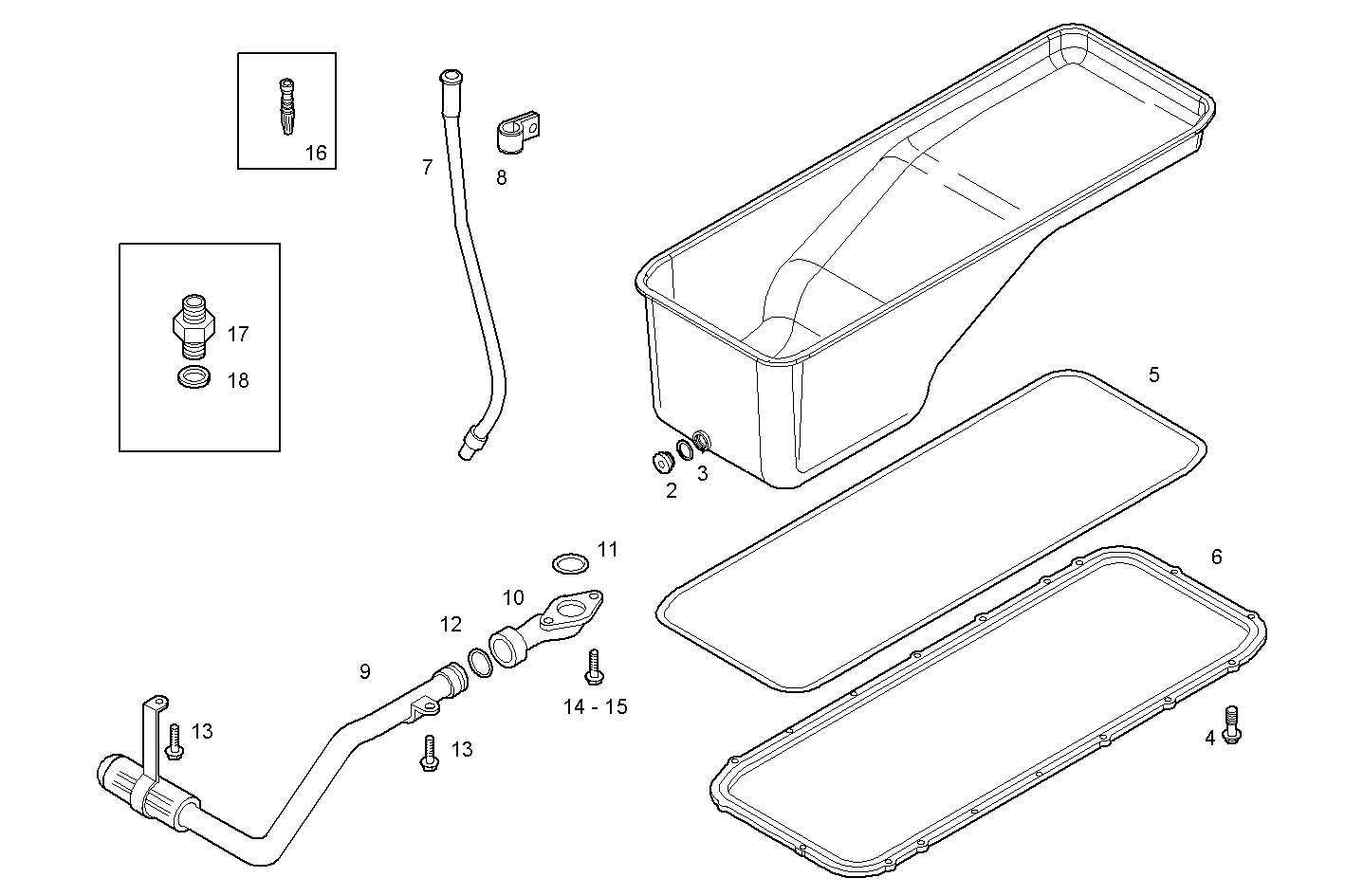

| Item |
Part number |
Description |
|
1 |
8037948 |
MARINE ENGINE OIL SUMP |
|
2 |
16992611 |
THREADED PLUG M22X1,5 |
|
3 |
99489022 |
SEAL GASKET Ø22X30 MM SP=1,5 MM |
|
4 |
16587525 |
HEXAGON BOLT M10X45 MM |
|
5 |
99443902 |
OIL SUMP GASKET |
|
6 |
99437092 |
SPACING BAR |
|
7 |
8038101 |
OIL LEVEL TUBE |
|
8 |
8042411 |
FASTENING BRACKET |
|
9 |
8037946 |
SUCTION STRAINER |
|
10 |
98474898 |
INTAKE ELBOW |
|
11 |
99477046 |
O-RING Ø38 MM SP=3 MM |
|
12 |
17282981 |
O-RING 2,62x34,59 |
|
13 |
16586225 |
HEXAGON BOLT M8X1,25X16 MM |
|
14 |
16586725 |
HEXAGON BOLT M8X1.25X40 MM |
|
15 |
16592225 |
HEXAGON BOLT M8X55 MM |
|
16 |
4624702 |
GASKET |
|
17 |
16509311 |
SWIVEL COUPLING |
|
18 |
99489020 |
SEAL GASKET Ø18X26 MM SP=1,5 MM |
