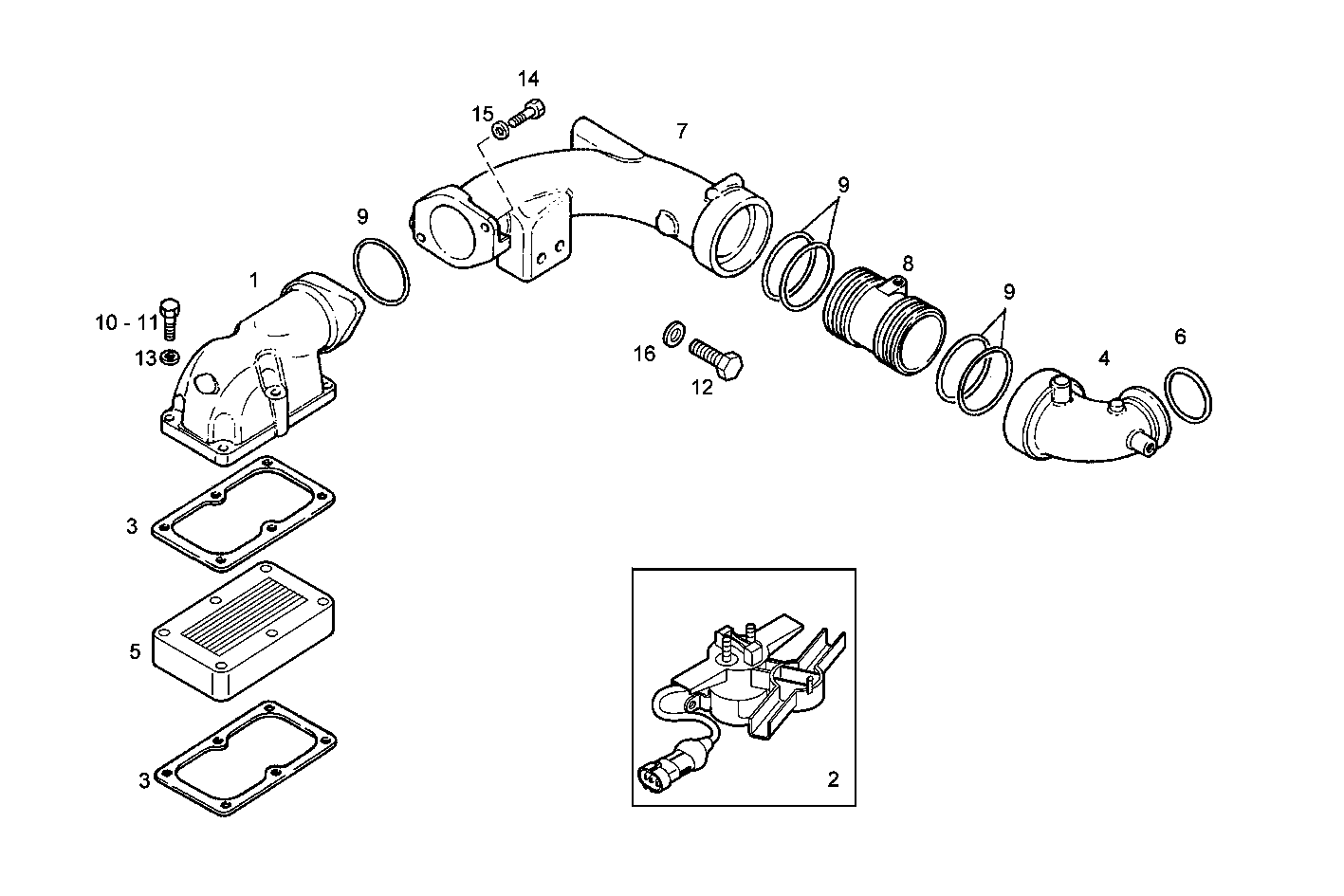

A20200501 THERMO-STARTER - 24V

Iveco/FPT THERMO-STARTER

Item Part number Description
1 8030869 AIR HOOD
2 99449300 RELAY 24v-150a
3 504026624 FLAT ENGINE GASKET
4 8030532 INTAKE ELBOW
5 99437042 RESISTOR
6 17284681 O-RING Ø61,6 MM SP=2,62 MM
7 8030546 AIR PIPE/DUCT
8 8009896 ADAPTER
9 17290581 O-RING Ø72,63X3,53 MM
10 16606924 SCREW M8X110
11 16605824 HEXAGON BOLT M8X35 MM
12 16603524 SCREW M6X12 MM (8.8)
13 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
14 16608124 HEXAGON BOLT M10X1,5X50 MM
15 17090174 SPRING WASHER Ø10X20 MM
16 17800374 SPRING WASHER Ø6X12 MM
