C78ENTM55.10

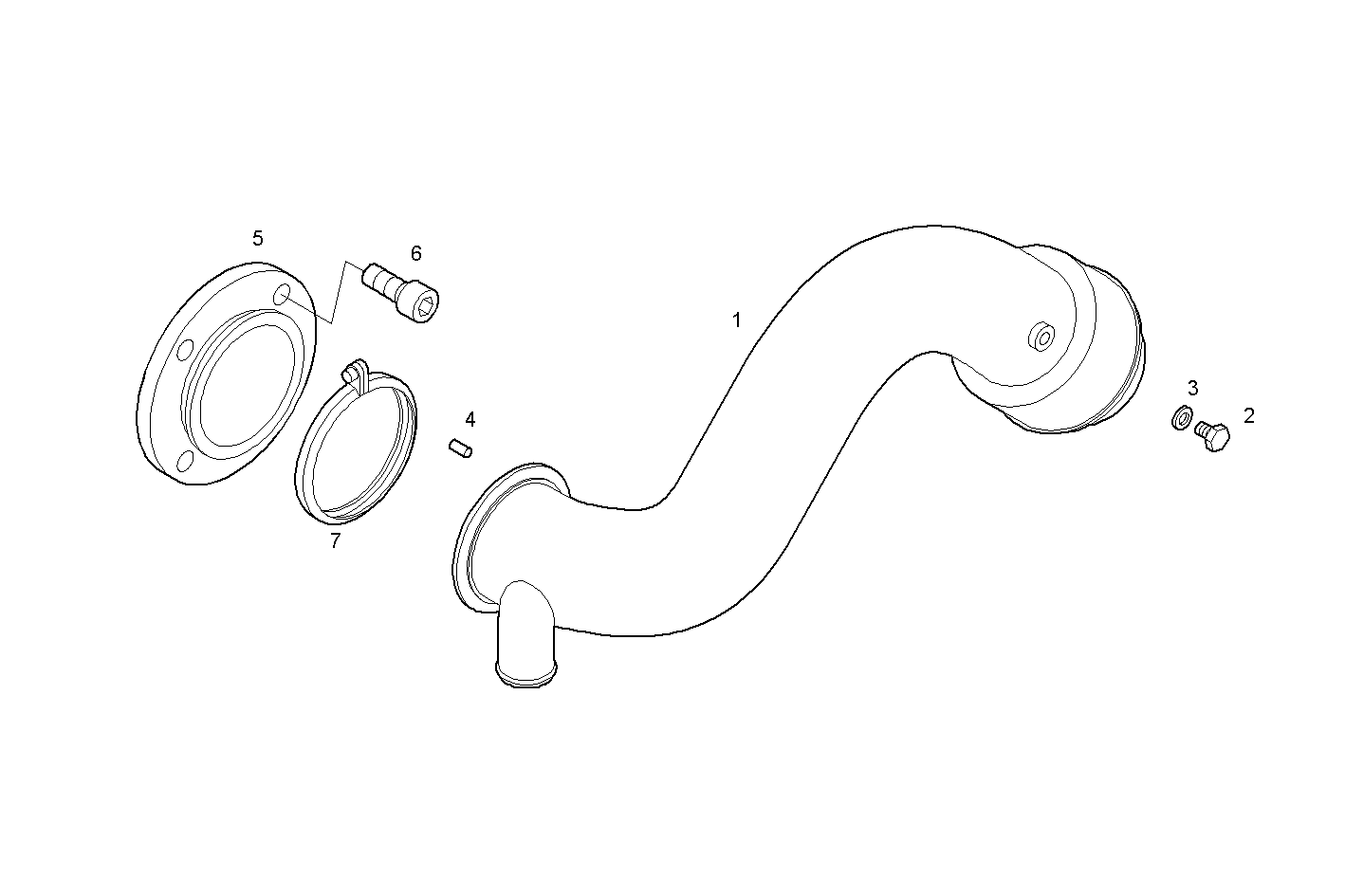

A40050515/01 GAS-WATER MIXER WITH STERN OUTLET
| Item | Part number | Description |
|---|---|---|
| 1 | 8042385 | MARINE EXHAUST PIPE |
| 2 | 16992211 | THREADED PLUG M12X1,5 |
| 3 | 99489017 | SEAL GASKET Ø12X20 MM SP=1,5 MM |
| 4 | 17238424 | PIN |
| 5 | 8042173 | FLANGE |
| 6 | 17344424 | SOCKET-HEAD SCREW M8X25 |
| 7 | 504064329 | CLIP |
