C78ENTM55.10

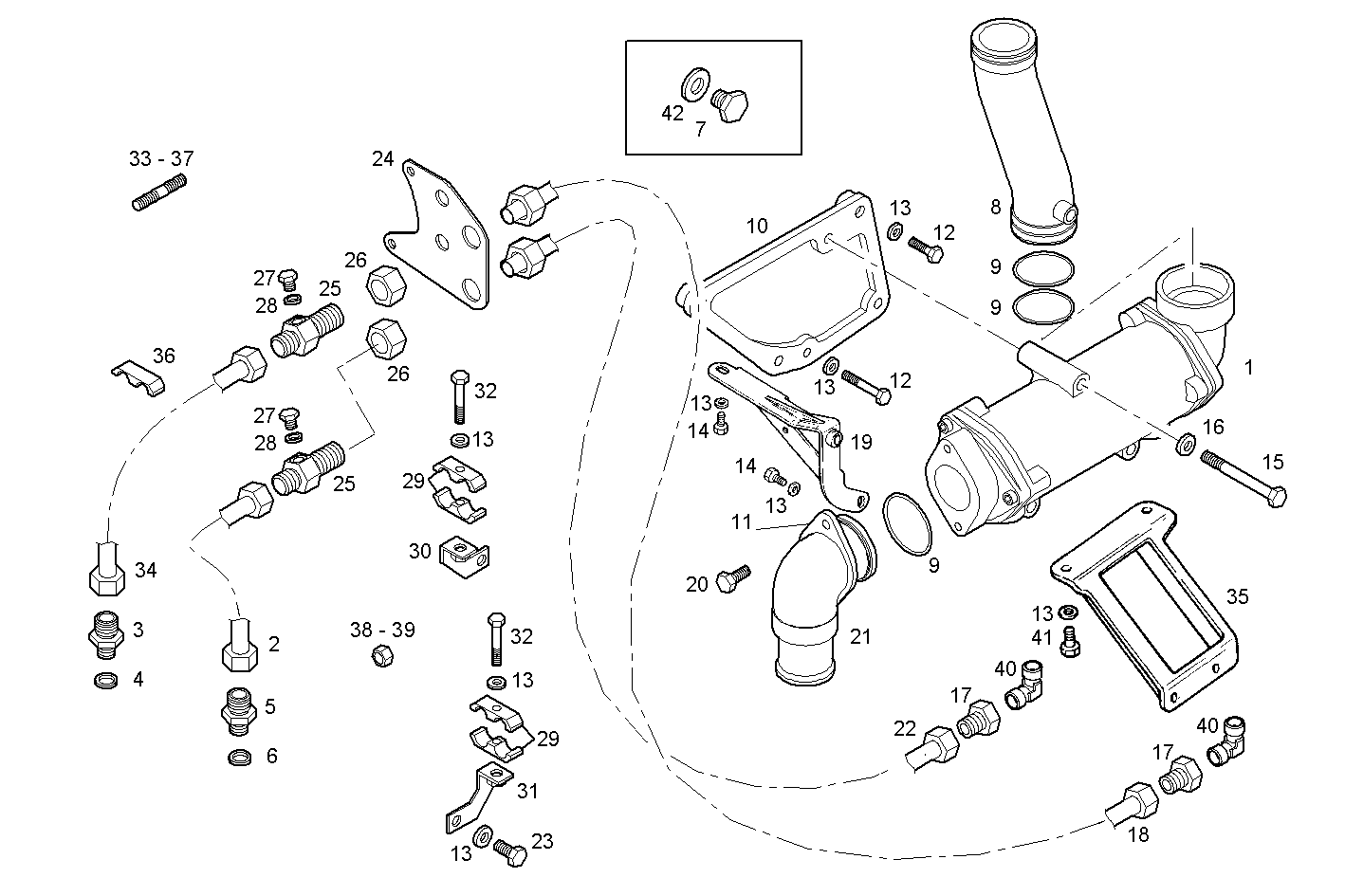

A51106503/01 MARINE GEAR - ZF 304A ratio 1:1,525

Iveco/FPT MARINE GEAR

Item Part number Description
1 8029435 OIL/WATER HEAT EXCHANGER ASSY
2 8031908 OIL HOSE
3 8023701 PIPE SOCKET
4 11270460 GASKET Ø17X21X1,5 MM
5 8100897 PIPE SOCKET 1/2"/M16X1,5
6 99489019 WASHER Ø16X24 MM SP=1,5 MM
7 99489021 WASHER Ø20X28 MM SP=1,5 MM
8 8034503 SPACING BAR
9 17289981 O-RING Ø53,57X3,53 MM
10 8034517 RETAINER
11 8022237 FLANGE
12 16607434 HEXAGON BOLT M10X16 MM
13 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
14 16605724 SCREW M8X1,25X30
15 16608724 HEXAGON BOLT M10X90 MM
16 17090174 SPRING WASHER Ø10X20 MM
17 8011138 PIPE SOCKET 1/2''/M16X1,5
18 8034533 DELIVERY LINE
19 8031103 RETAINER
20 16605624 HEXAGON BOLT M8X25 MM (8.8)
21 8026482 WATER PIPE
22 8034536 OIL LINE
23 16607524 HEXAGON BOLT M10X1,5X20 MM (8.8)
24 8032349 RETAINER
25 8032220 PIPE SOCKET
26 41217235 HEXAGON NUT M22X1,5
27 11903140 PLUG M10X1,25
28 99489016 SEAL GASKET Ø10X17 MM SP =1,5
29 8010505 CLAMP Ø16 MM
30 8033495 RETAINER
31 8032187 RETAINER
32 16605934 HEXAGON BOLT M8X40 MM (10.9)
33 17368624 STUD M10X1,5X25 MM
34 8100965 OIL HOSE
35 8029420 RETAINER
36 8032246 SPRING CLAMP
37 17368225 STUD
38 17038131 HEXAGON NUT M10
39 16508811 NUT M16X1,5
40 8034521 SWIVEL COUPLING
41 16605670 SCREW M8X25 MM
42 4595833 THREADED PLUG M20X1,5
