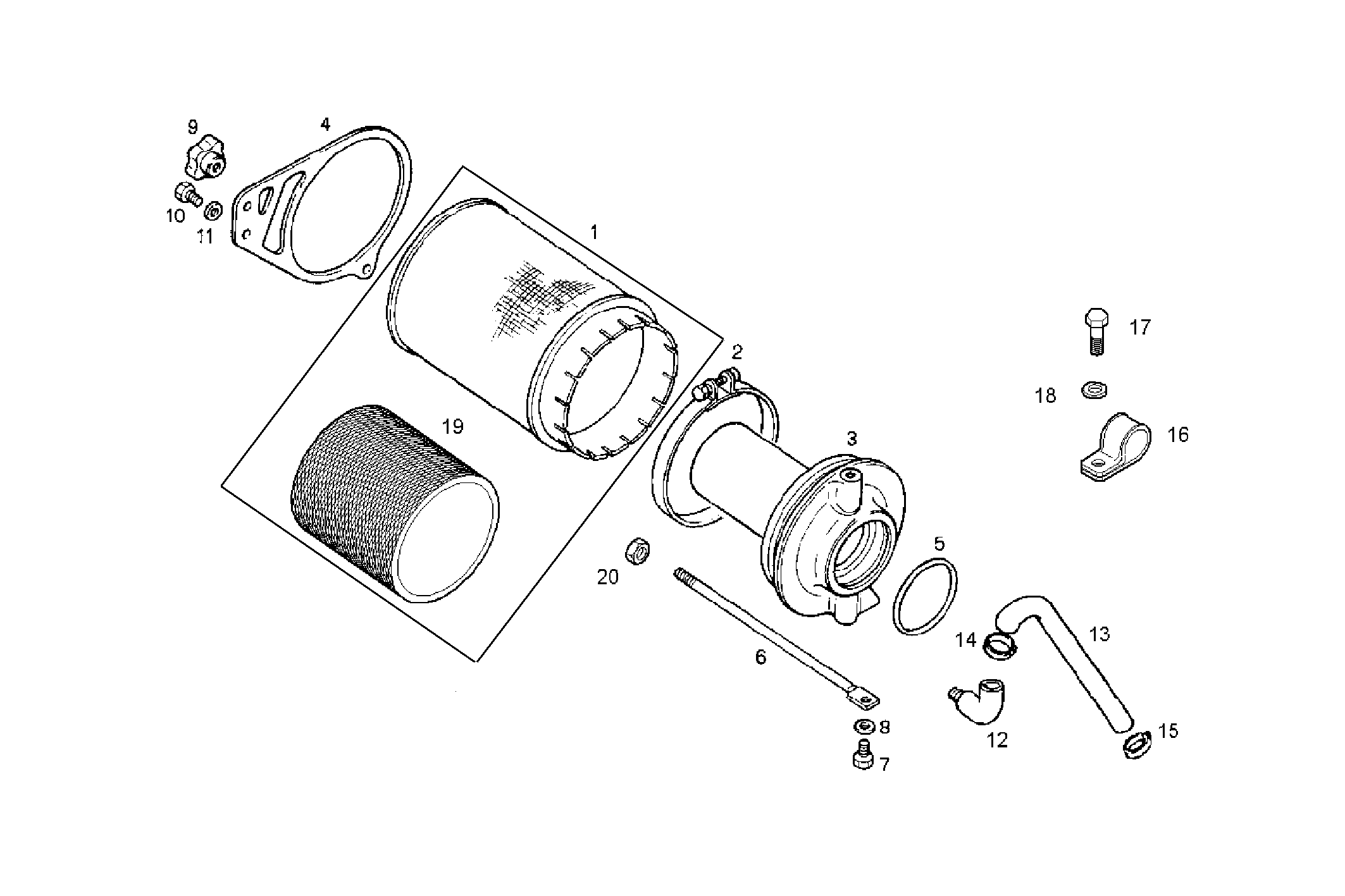

| Item |
Part number |
Description |
|
1 |
8039480 |
AIR CLEANER ASSY |
|
2 |
8017374 |
CLIP |
|
3 |
8042044 |
AIR MANIFOLD |
|
4 |
8040204 |
FASTENING BRACKET |
|
5 |
17292181 |
O-RING Ø123,42X3,53 MM |
|
6 |
8040219 |
STUD M6X1 |
|
7 |
16603677 |
HEXAGON BOLT M6X16 MM |
|
8 |
17088474 |
WASHER Ø6X12 MM |
|
9 |
8030569 |
HANDWHEEL M6X1 |
|
10 |
16605534 |
HEXAGON BOLT M8X20 MM (10.9) |
|
11 |
17089474 |
SPRING WASHER Ø8X16 MM SP=1,4 MM |
|
12 |
4527314 |
PIPE SOCKET |
|
13 |
8040558 |
AIR HOSE |
|
14 |
17764693 |
CLIP Ø25/40 MM |
|
15 |
17764593 |
CLIP Ø20/32 MM |
|
16 |
17317390 |
FASTENING BRACKET Ø28 MM x M8 |
|
17 |
16605424 |
SCREW M8X16 MM (8.8) |
|
19 |
8040501 |
AIR FILTER ELEMENT |
|
20 |
17037821 |
HEXAGON NUT M6X1 |
