C78ENTM55.10A001

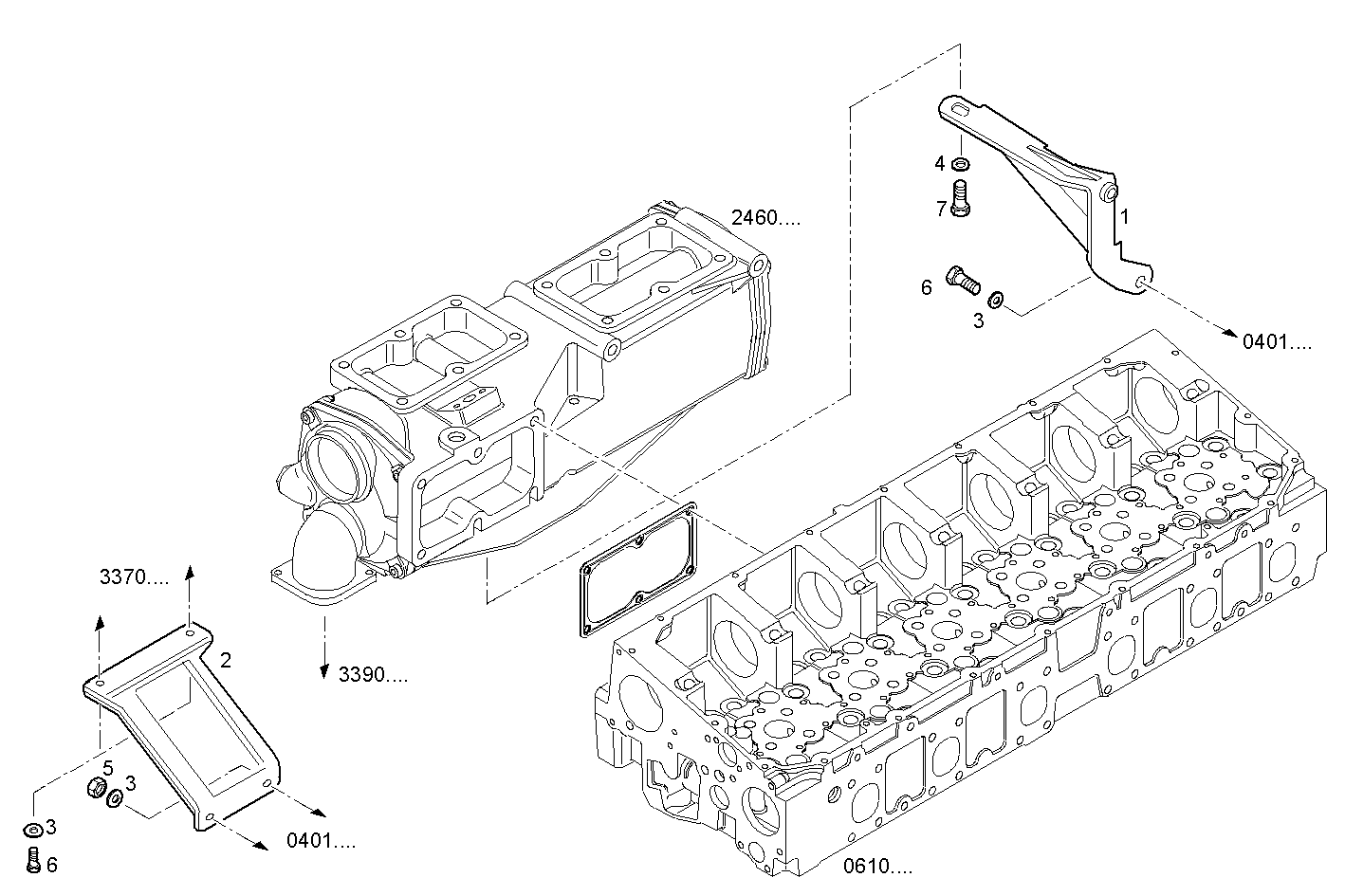

2466.001 HEAT EXCHANGER SUPPORT
| Item | Part number | Description |
|---|---|---|
| 1 | 8031103 | RETAINER |
| 2 | 8029420 | RETAINER |
| 3 | 17090174 | SPRING WASHER Ø10X20 MM |
| 4 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 5 | 17038131 | HEXAGON NUT M10 |
| 6 | 16607524 | HEXAGON BOLT M10X1,5X20 MM (8.8) |
| 7 | 16605524 | HEXAGON BOLT M8X20 MM |
