C78ENTM55.10A001

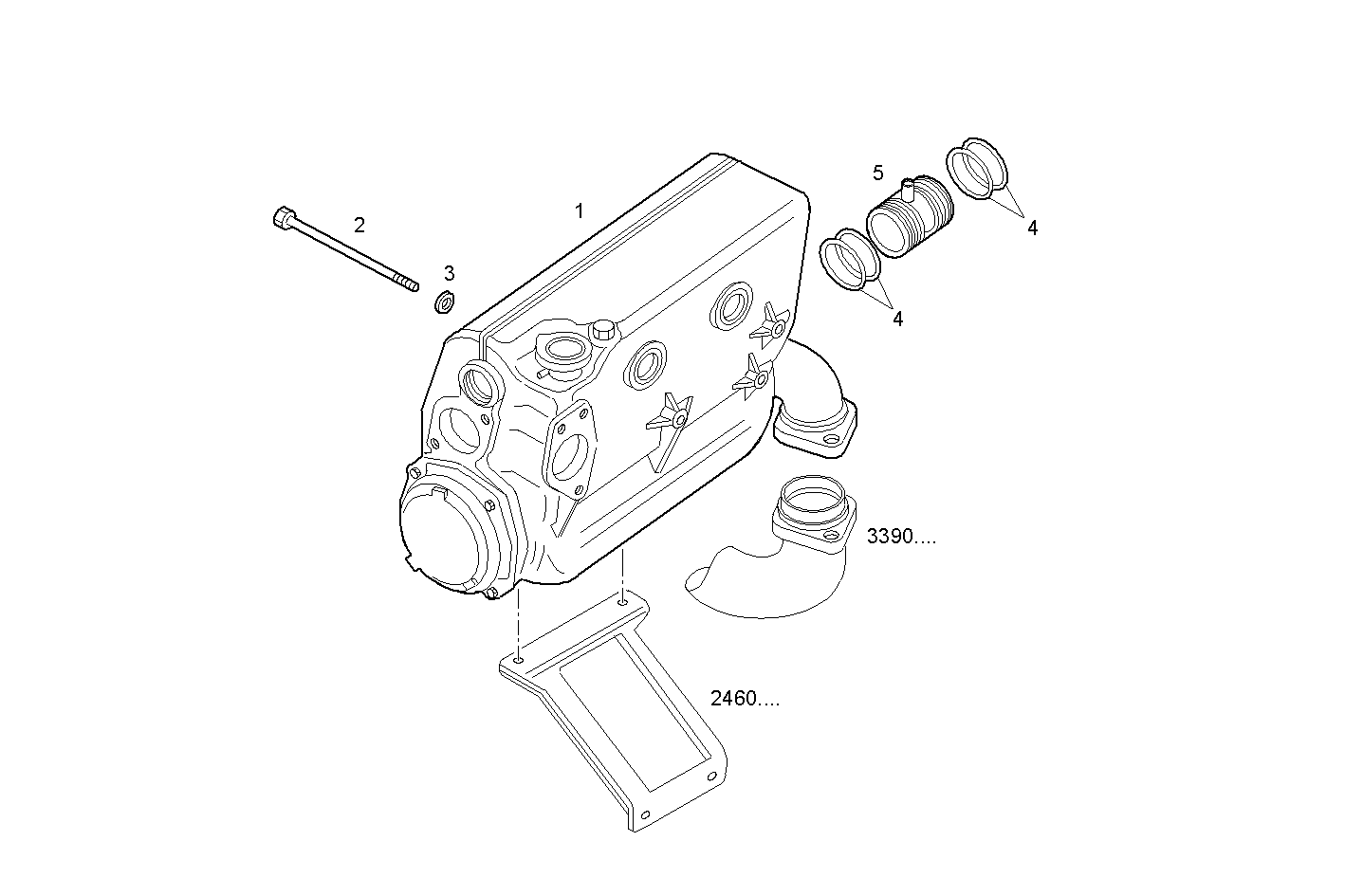

3370.047 FRESH WATER - SEA WATER HEAT EXCHANGER
| Item | Part number | Description |
|---|---|---|
| 1 | 8041380 | WATER/SEA WATER HEAT EXCH |
| 2 | 8030913 | SCREW M8X1,25X200 |
| 3 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 4 | 17289981 | O-RING Ø53,57X3,53 MM |
| 5 | 8029811 | SPACING BAR |
