C78ENTM55.10A001

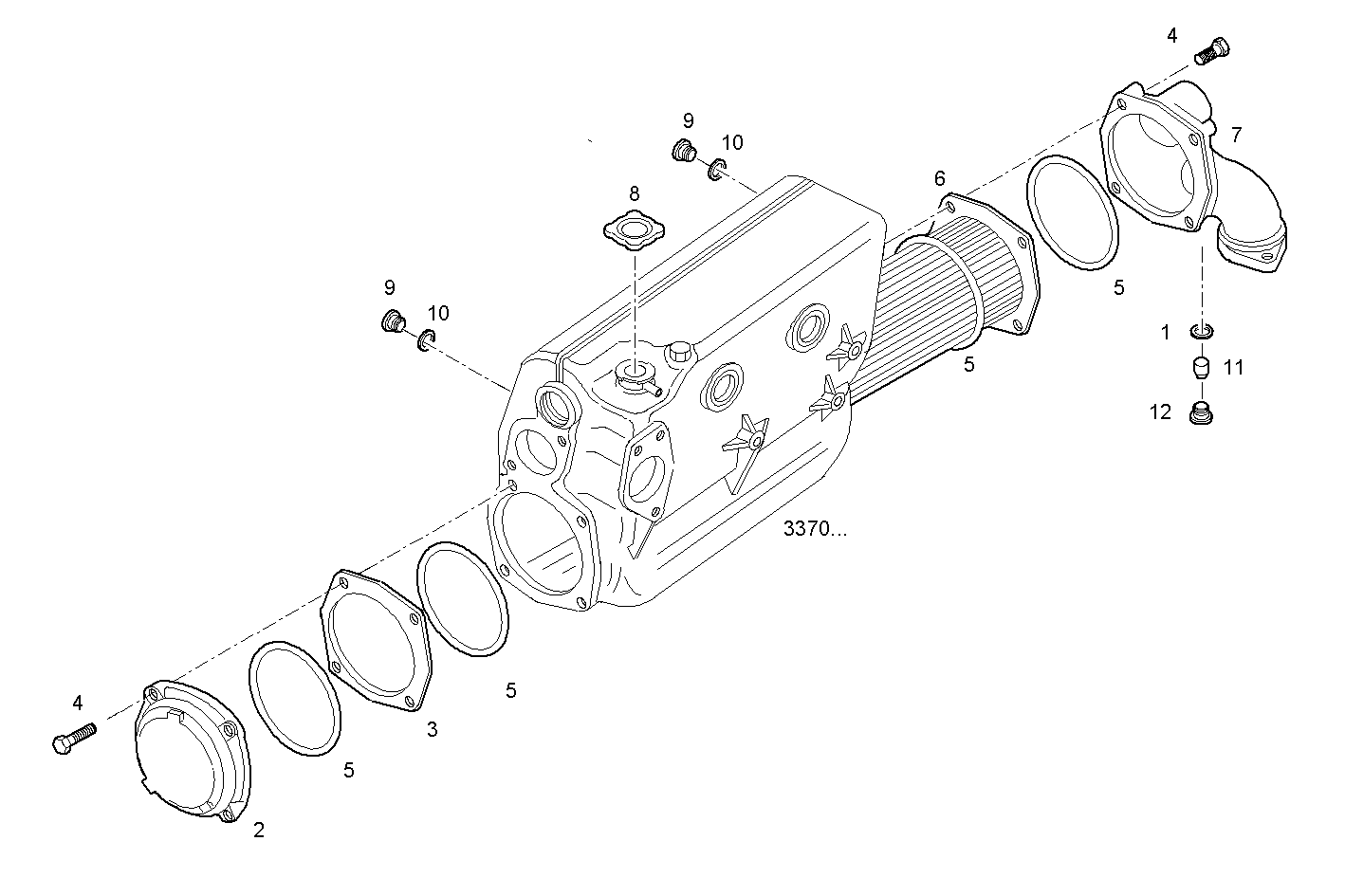

3371.003 FRESH WATER - SEA WATER HEAT EXCHANGER (COMPONENTS)
| Item | Part number | Description |
|---|---|---|
| 1 | 99489020 | SEAL GASKET Ø18X26 MM SP=1,5 MM |
| 2 | 8029427 | HEAT EXCHANG.COVER REAR |
| 3 | 8029428 | SPACING BAR |
| 4 | 16690924 | CYLIND-HEAD SCREW M8X40 MM |
| 5 | 8030481 | O-RING Ø142,47X3,53 MM |
| 6 | 8037999 | TUBE STACK |
| 7 | 8029434 | HEAT EXCHANG.COVER |
| 8 | 8029432 | PLUG |
| 9 | 16992340 | THREADED PLUG M14X1,5 |
| 10 | 99489018 | SEAL GASKET Ø14X22 MM SP=1,5 MM |
| 11 | 8105277 | SACRIFICAL ANODE Ø14 MM |
| 12 | 4917793 | PLUG M18 |
