C78ENTM55.10A001

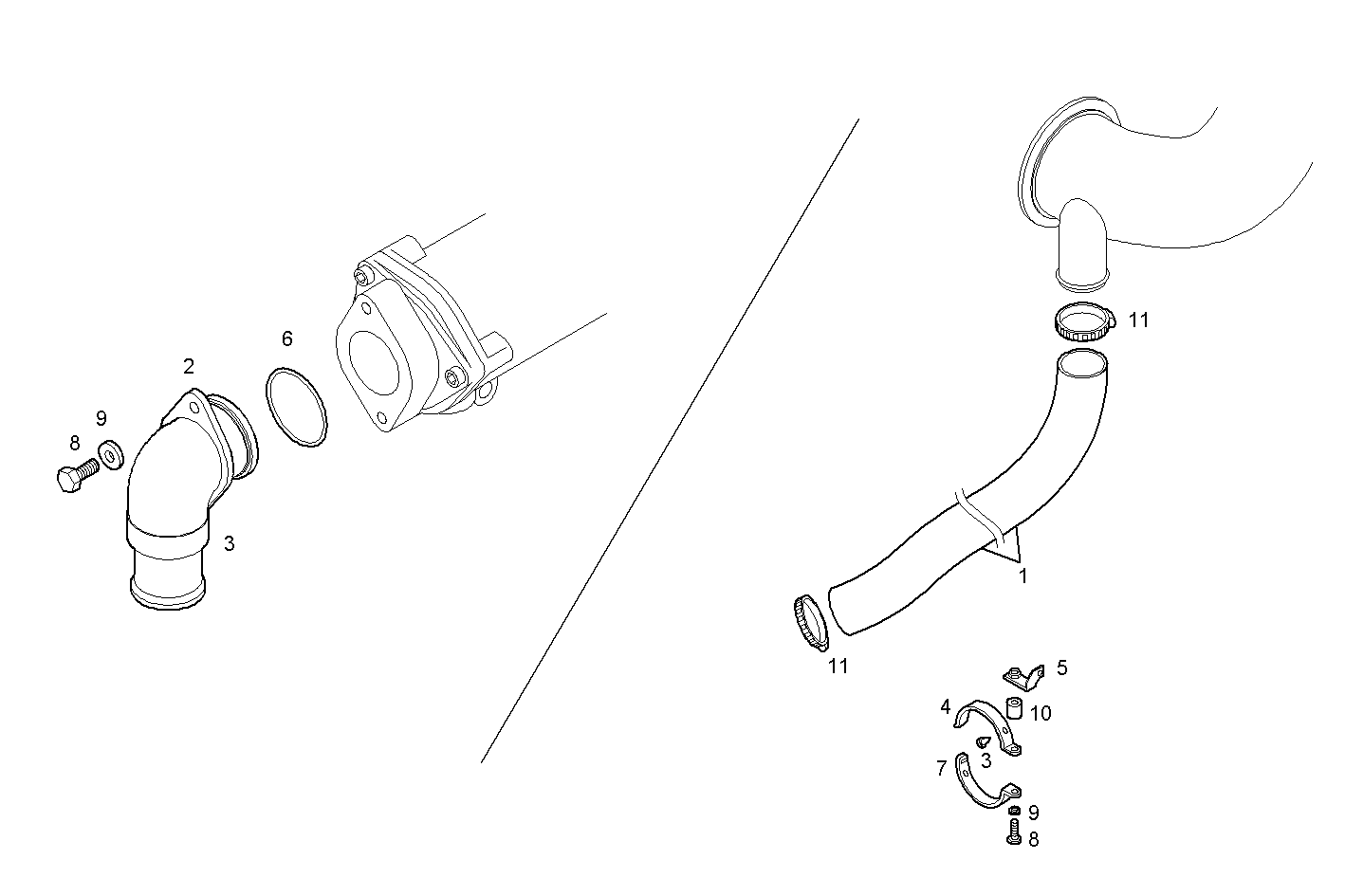

A40050514/02 GAS-WATER MIXER WITH STERN OUTLET
| Item | Part number | Description |
|---|---|---|
| 1 | 8019908 | HOSE |
| 2 | 8022237 | FLANGE |
| 3 | 8032238 | PIPE |
| 3 | 1366290 | RUBBER LUG |
| 4 | 8113296 | CLAMP Ø50 MM |
| 5 | 8033807 | FASTENING BRACKET |
| 6 | 17289881 | O-RING Ø50,3 MM SP=3,5 MM |
| 7 | 8113295 | CLAMP Ø50 MM |
| 8 | 16605670 | SCREW M8X25 MM |
| 9 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 10 | 17816714 | SPACING BAR |
| 11 | 17764993 | CLIP Ø50/70 MM |
