C78ENTM55.12

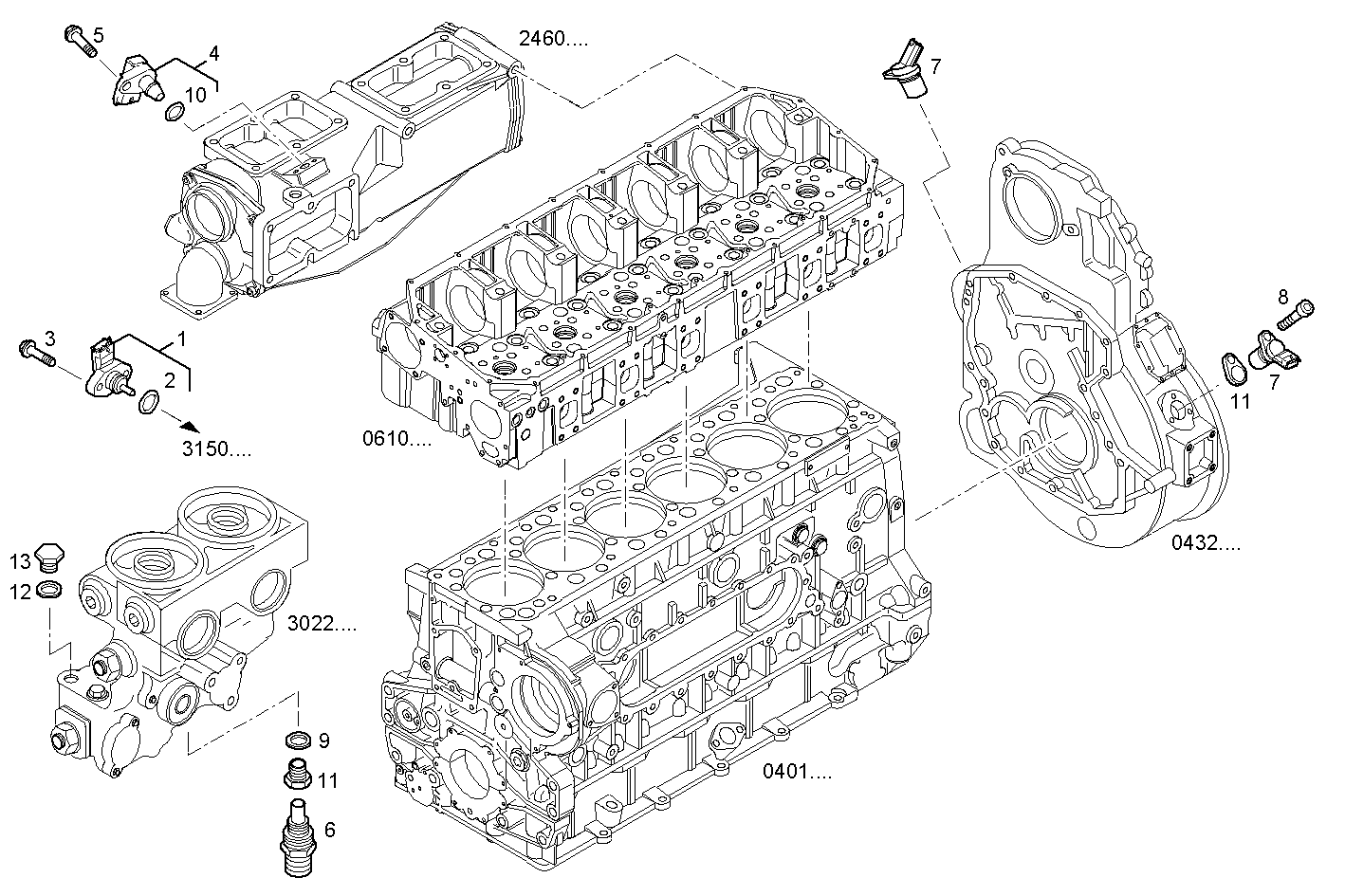

1710.035 SENSORS - INJECTION SYSTEM
| Item | Part number | Description |
|---|---|---|
| 1 | 4890193 | SENSOR OIL PRESS. & TEMPER. |
| 2 | 4895477 | O-RING |
| 3 | 4899110 | HEXAGON BOLT |
| 4 | 504073323 | SENSOR AIR PRESS. & TEMPER. [FROM # 158928] |
| 5 | 16597225 | HEXAGON BOLT M6X18 MM |
| 6 | 500382599 | TEMP. TRANSMITTER PRESS. & TEMPER. |
| 7 | 504096645 | SENSOR |
| 8 | 504163664 | CONNECTING PLATE |
| 9 | 99489021 | WASHER Ø20X28 MM SP=1,5 MM |
| 10 | 42546555 | O-RING [FROM # 158928] |
| 11 | 8040042 | THREADED UNION M 20x1.5 MM |
| 12 | 99489019 | WASHER Ø16X24 MM SP=1,5 MM |
| 13 | 16992415 | THREADED PLUG M16X1,5 |
