C78ENTM55.12

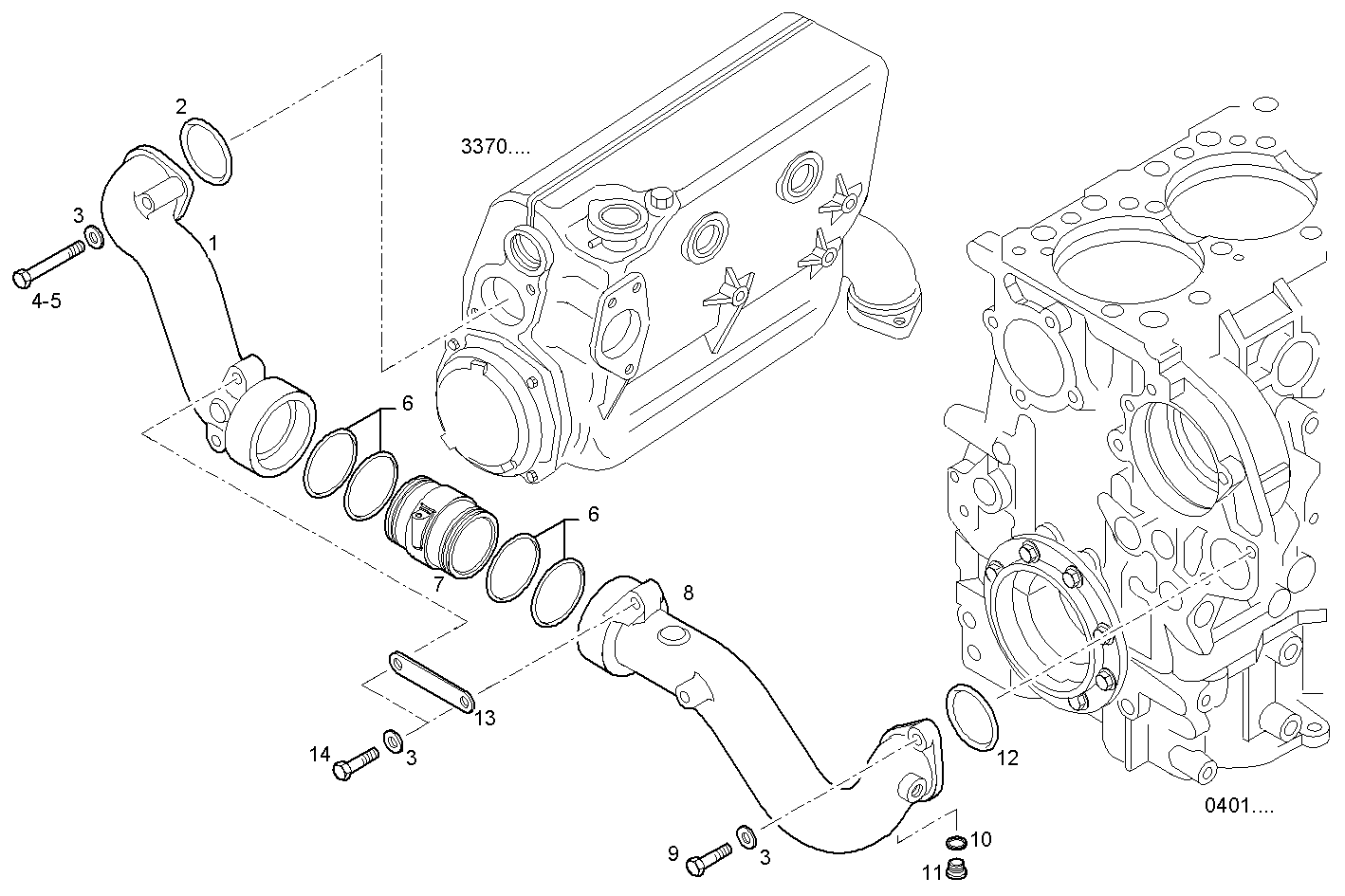

3230.028 WATER PIPE
| Item | Part number | Description |
|---|---|---|
| 1 | 8030461 | WATER PIPE |
| 2 | 17290381 | O-RING �66,27 MM SP=3,53 MM |
| 3 | 17089474 | SPRING WASHER �8X16 MM SP=1,4 MM |
| 4 | 16606624 | HEXAGON BOLT M8X80 MM |
| 5 | 16605624 | HEXAGON BOLT M8X25 MM (8.8) |
| 6 | 17290581 | O-RING �72,63X3,53 MM |
| 7 | 8025307 | WATER PIPE |
| 8 | 8030462 | WATER PIPE |
| 9 | 16606124 | HEXAGON BOLT M8X50 MM |
| 10 | 99489017 | SEAL GASKET �12X20 MM SP=1,5 MM |
| 11 | 16992240 | THREADED PLUG M12X1,5 |
| 12 | 17290081 | O-RING �56,74 MM SP=3,53 MM |
| 13 | 8030509 | RETAINER |
| 14 | 16605424 | SCREW M8X16 MM (8.8) |
