C87ENTX20.00

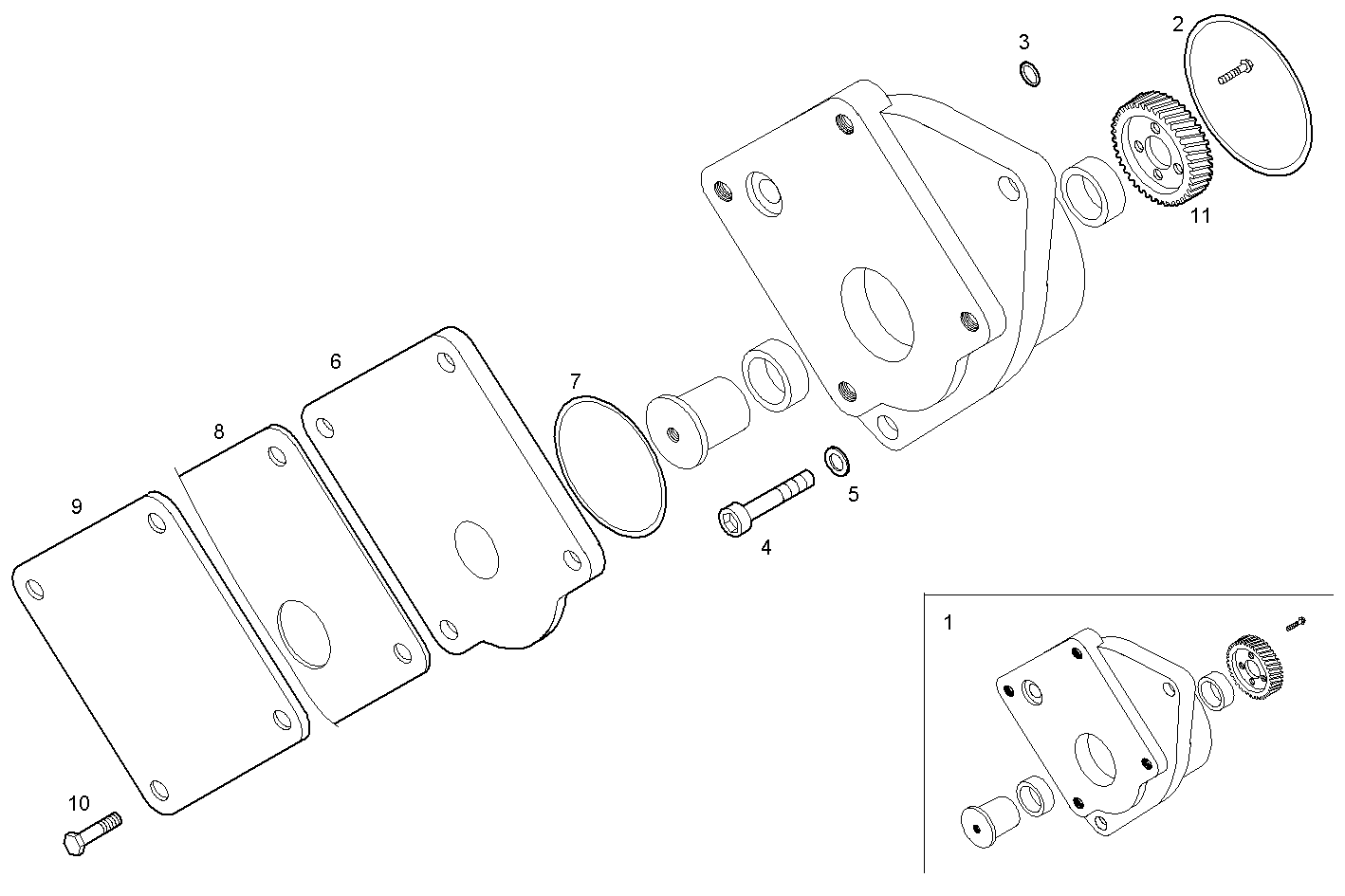

A09280509 PTO ARRANGEMENT
| Item | Part number | Description |
|---|---|---|
| 1 | 8045438 | POWER TAKE OFF |
| 2 | 17292281 | O-RING Ø126,59 MM SP=3,53 MM |
| 3 | 17281381 | O-RING Ø9,19 MM [FROM TO # 62977] |
| 4 | 41033356 | SOCKET-HEAD SCREW |
| 5 | 17095224 | WASHER Ø12X20 MM |
| 6 | 504020638 | SPACING BAR |
| 7 | 504042516 | O-RING |
| 8 | 8009914 | GASKET |
| 9 | 504020736 | PTO COVER |
| 10 | 16675835 | HEXAGON BOLT M10X30 MM |
| 11 | 8045435 | PTO GEAR |
