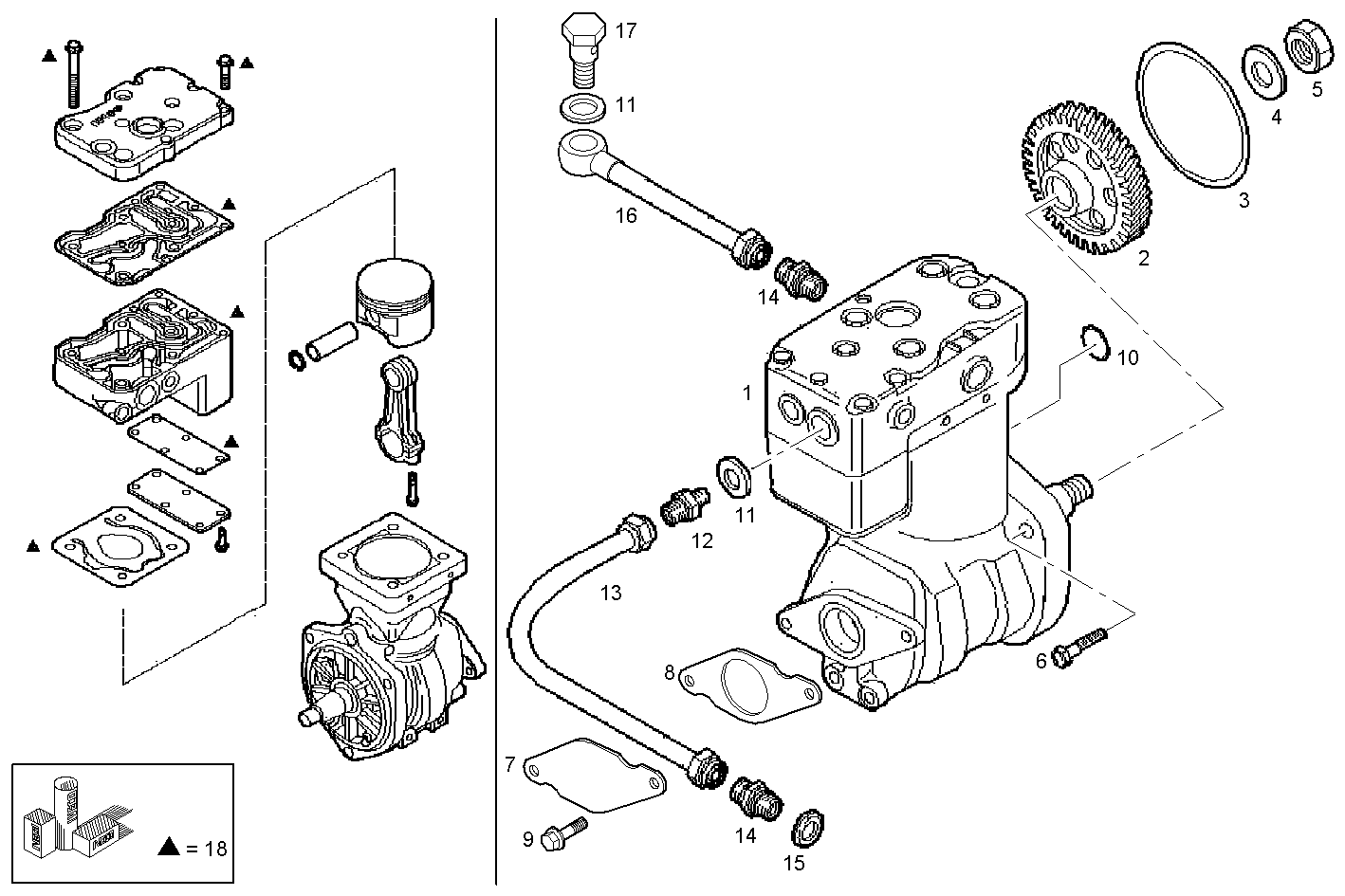

| Item |
Part number |
Description |
|
1 |
41211219 |
AIR COMPRESSOR |
|
2 |
504124646 |
COMP. DRIVE GEAR |
|
3 |
17292281 |
O-RING Ø126,59 MM SP=3,53 MM |
|
4 |
17095914 |
WASHER |
|
5 |
99471892 |
HEXAGON NUT |
|
6 |
16693924 |
CYLIND-HEAD SCREW M12X35MM |
|
7 |
504016777 |
COVER |
|
8 |
504016778 |
FLAT ENGINE GASKET |
|
9 |
18139424 |
HEXAGON BOLT M10X20 MM |
|
10 |
17281381 |
O-RING Ø9,19 MM [FROM TO # 62977] |
|
11 |
98474311 |
SEAL GASKET Ø18X26 MM |
|
12 |
504081277 |
THREADED UNION M18X1.5 |
|
13 |
504073755 |
WATER PIPE |
|
14 |
504081274 |
THREADED UNION M16X1,5 - M18X1,5 |
|
15 |
99489019 |
WASHER Ø16X24 MM SP=1,5 MM |
|
16 |
504164149 |
WATER PIPE |
|
17 |
504081280 |
BANJO BOLT M18X1,5 |
|
18 |
42541602 |
KIT-AIR COMPRESSOR |
