C87ENTX20.00A003

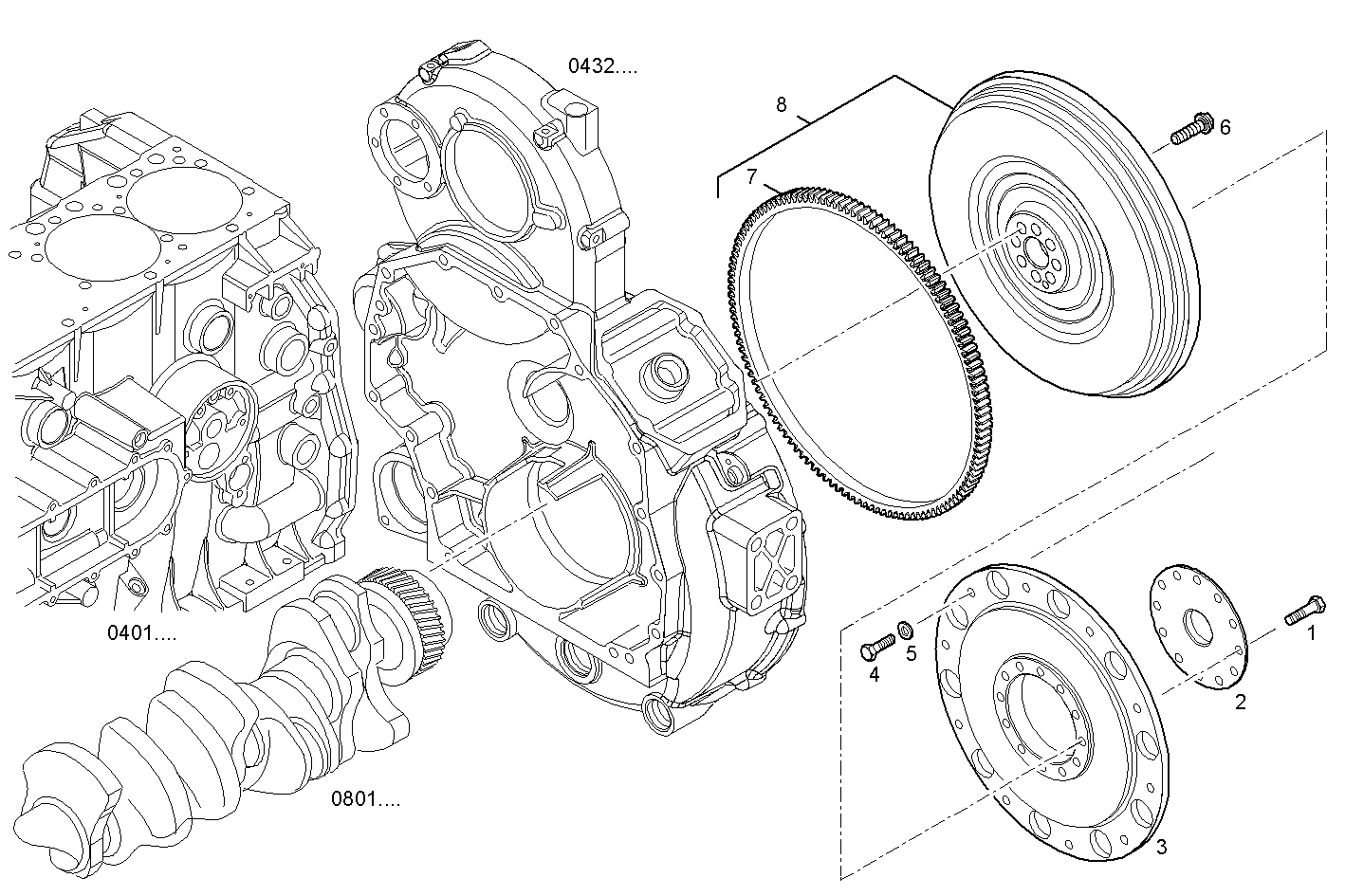

0830.314 ENGINE FLYWHEEL
| Item | Part number | Description |
|---|---|---|
| 1 | 17458234 | LOCKING SCREW M12X30 MM |
| 2 | 98484427 | FLANGE |
| 3 | 8045733 | SPACING BAR |
| 4 | 16610124 | HEXAGON BOLT M12X40 MM |
| 5 | 17091074 | WASHER Ø12X24X2,8 MM |
| 6 | 99430395 | HEXAGON BOLT |
| 7 | 99438525 | RING GEAR |
| 8 | 8045732 | FLYWHEEL ASSY |
