C87ENTX20.00A003

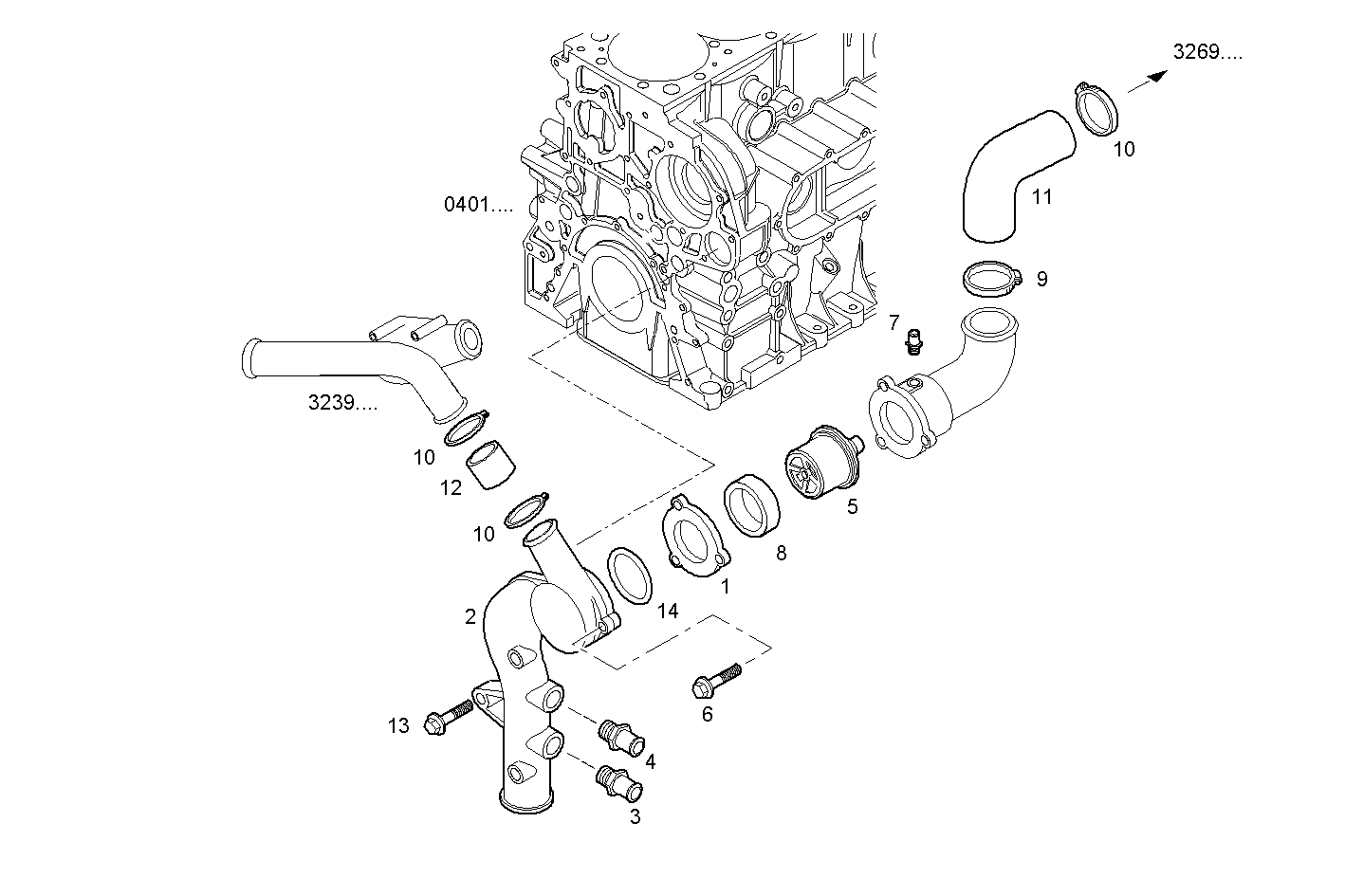

3260.047 TEMPERATURE REGULATOR
| Item | Part number | Description |
|---|---|---|
| 1 | 99479999 | FLAT ENGINE GASKET |
| 2 | 99478815 | THERMOSTAT BODY |
| 3 | 99478004 | THREADED UNION |
| 4 | 99464284 | PIPE SOCKET M30X1,5 |
| 5 | 504096443 | THERMOSTAT |
| 6 | 16673735 | HEXAGON BOLT M8X25 MM |
| 7 | 98475758 | PIPE SOCKET |
| 8 | 98451661 | WASHER Ø57,7X67,5 MM |
| 9 | 17764991 | CLIP Ø50/70 MM |
| 10 | 17765091 | CLIP Ø60/80 MM |
| 11 | 500333973 | WATER HOSE |
| 12 | 99480479 | WATER HOSE |
| 13 | 16586925 | HEXAGON BOLT M8X50 MM |
| 14 | 17290081 | O-RING Ø56,74 MM SP=3,53 MM |
