C87ENTX20.00A003

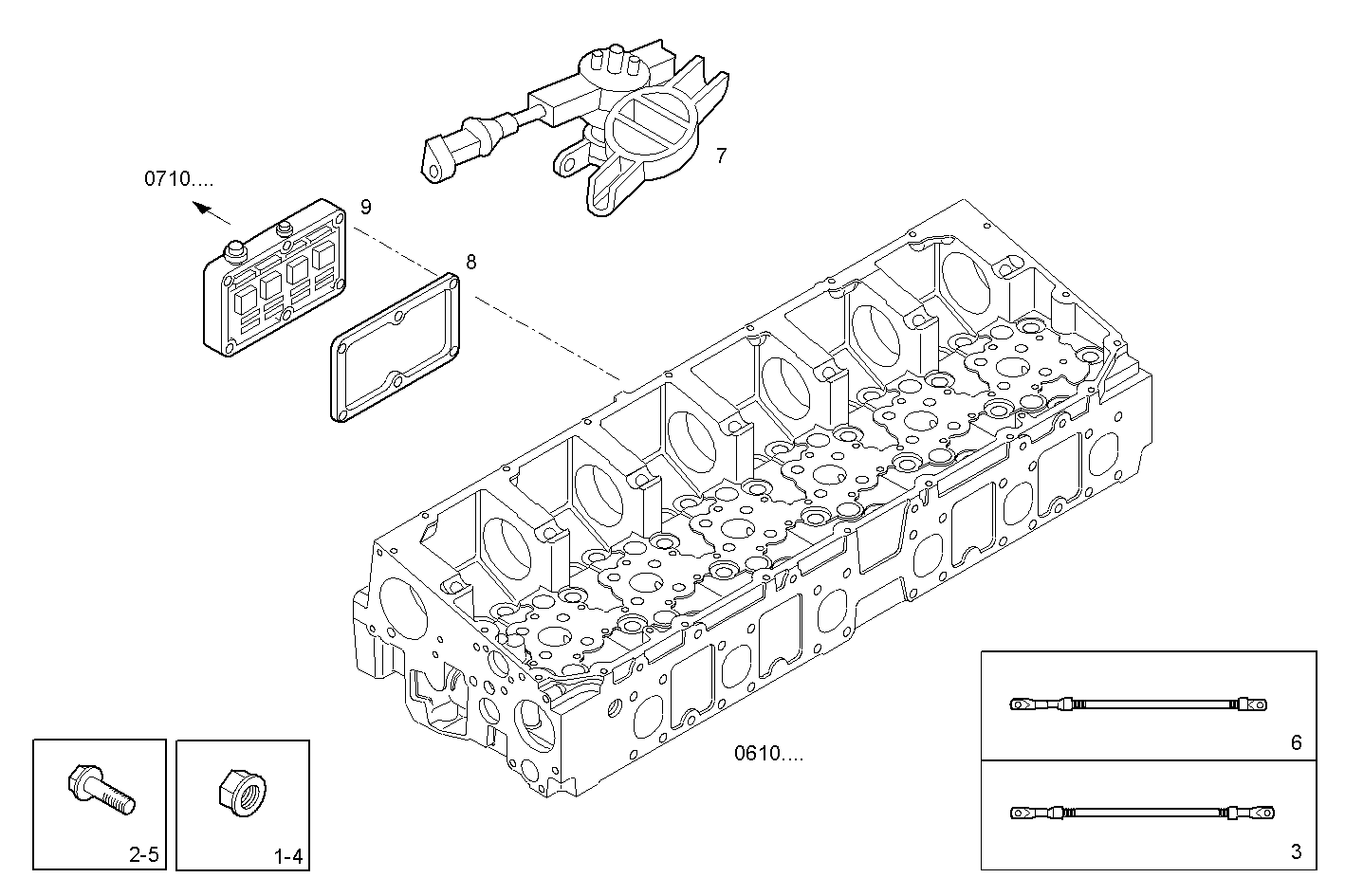

3650.064 THERMO-STARTER
| Item | Part number | Description |
|---|---|---|
| 1 | 17044725 | HEXAGON NUT M8 |
| 2 | 16597925 | HEXAGON BOLT M8X14 MM |
| 3 | 41207269 | WIRE/CABLE MASS CABLE ON PRE-HEATER ENGIN [UP TO # 45072] |
| 4 | 17044625 | HEXAGON NUT M6 |
| 5 | 16585625 | HEXAGON BOLT M6X12 |
| 6 | 504120000 | WIRE/CABLE |
| 7 | 99449300 | RELAY 24v-150a |
| 8 | 504026624 | FLAT ENGINE GASKET |
| 9 | 504041252 | RESISTOR 24V - 120/150A |
