C87ENTX20.00A003

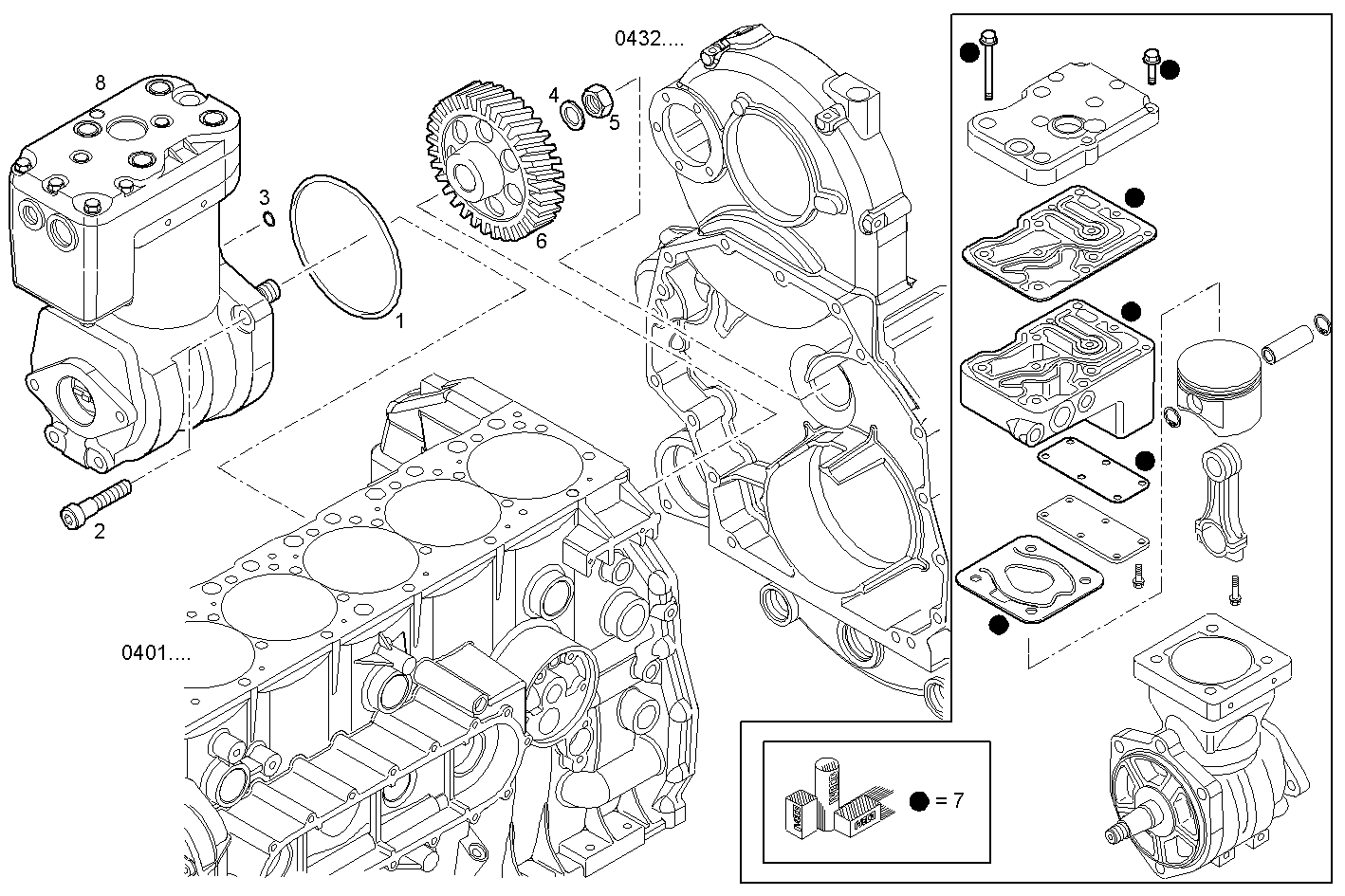

3801.012 AIR COMPRESSOR
| Item | Part number | Description |
|---|---|---|
| 1 | 17292281 | O-RING Ø126,59 MM SP=3,53 MM |
| 2 | 16693924 | CYLIND-HEAD SCREW M12X35MM |
| 3 | 17281381 | O-RING Ø9,19 MM [FROM TO # 62977] |
| 4 | 17095914 | WASHER |
| 5 | 99471892 | HEXAGON NUT |
| 6 | 504124646 | COMP. DRIVE GEAR |
| 7 | 42541602 | KIT-AIR COMPRESSOR |
| 8 | 41211219 | AIR COMPRESSOR |
