C87ENTX20.00A800

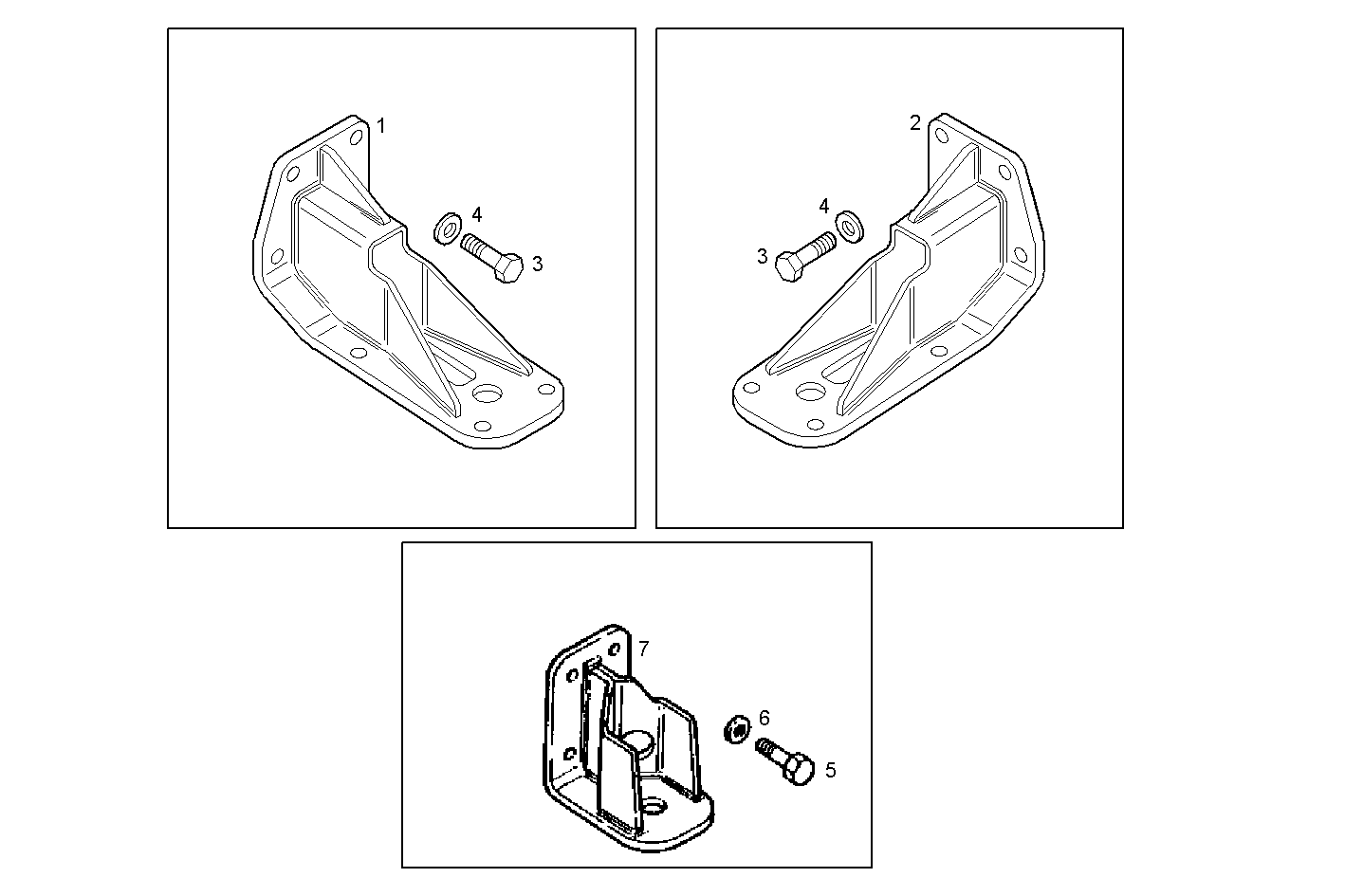

A04000517 RIGID MOUNTING
| Item | Part number | Description |
|---|---|---|
| 1 | 8044640 | FRONT ENG. MOUNT RIGHT |
| 2 | 8044639 | FRONT ENG. MOUNT LEFT |
| 3 | 16612324 | HEXAGON BOLT M14X35 MM |
| 4 | 17091674 | WASHER Ø14X27X3,0 MM |
| 5 | 16614524 | HEXAGON BOLT M16X35 MM |
| 6 | 17092174 | SPRING WASHER Ø16X32X3,4 |
| 7 | 8030307 | SUPPORT REAR |
