C87ENTX20.00A801

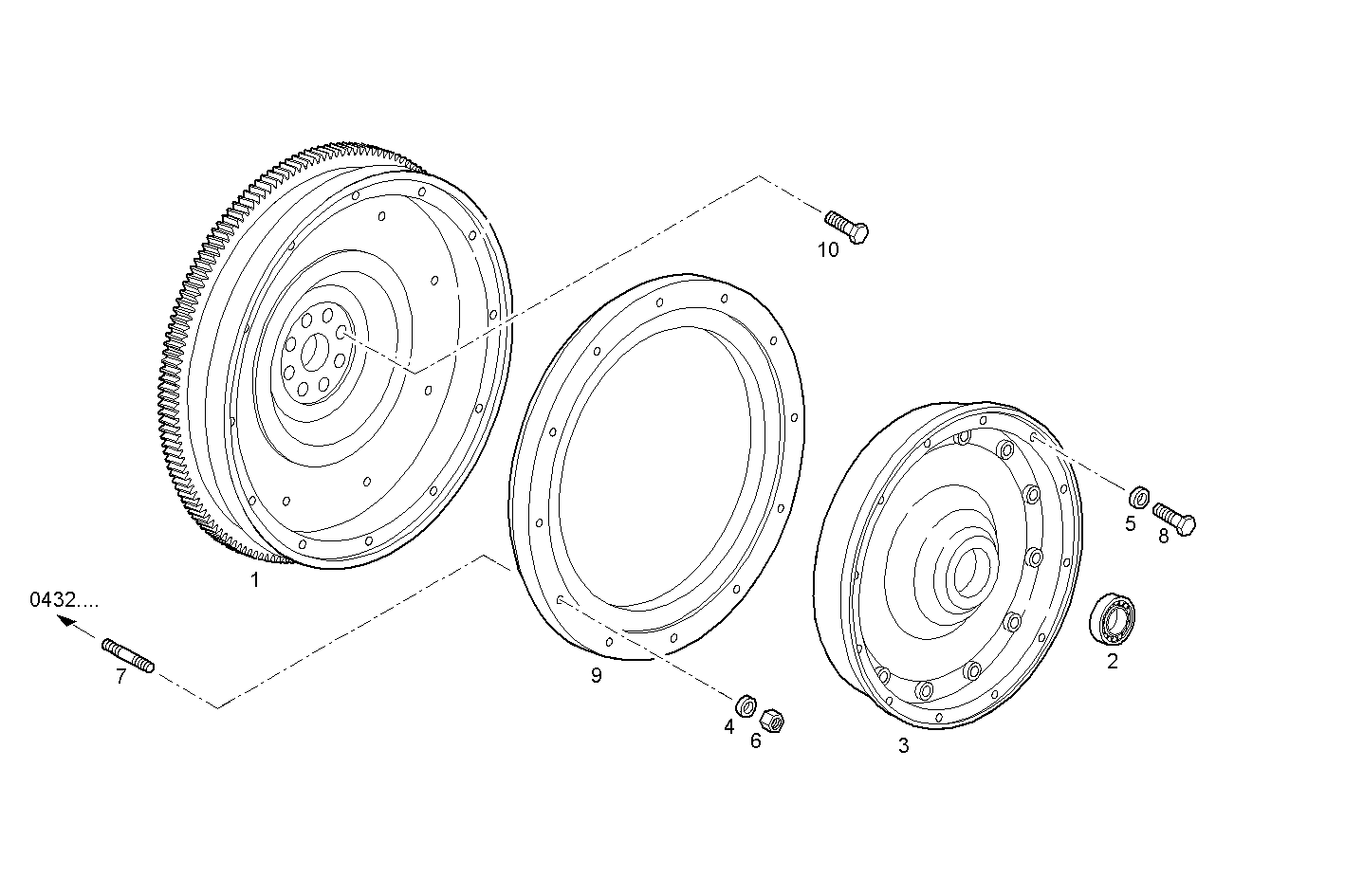

0830.303 ENGINE FLYWHEEL
| Item | Part number | Description |
|---|---|---|
| 1 | 8045998 | FLYWHEEL |
| 2 | 8005041 | DRIVE BEARING |
| 3 | 4931864 | FLANGE |
| 4 | 17090274 | WASHER Ø10X20 MM |
| 5 | 17091074 | WASHER Ø12X24X2,8 MM |
| 6 | 17038131 | HEXAGON NUT M10 |
| 7 | 17368924 | STUD M10X80 MM |
| 8 | 16610024 | SCREW M12X35 |
| 9 | 8110185 | SPACING BAR |
| 10 | 99430395 | HEXAGON BOLT |
