C87ENTX20.00A802

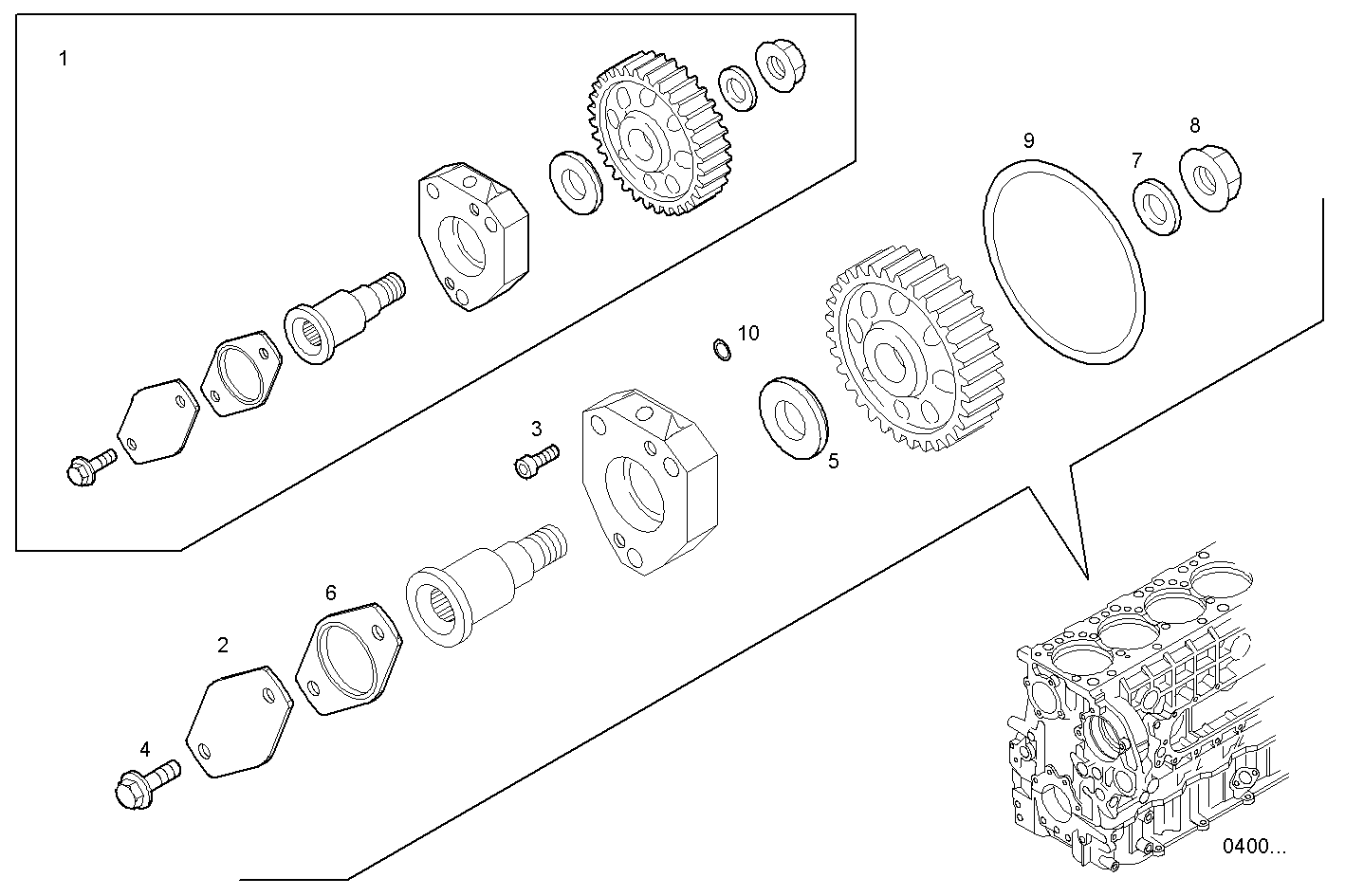

A09280511 ARRANGED FOR HYDRAULIC PUMP
| Item | Part number | Description |
|---|---|---|
| 1 | 8045496 | POWER TAKE OFF |
| 2 | 504049033 | COVER |
| 3 | 41033356 | SOCKET-HEAD SCREW |
| 4 | 16677735 | HEXAGON BOLT M12X25 MM |
| 5 | 500351319 | WASHER |
| 6 | 4896897 | FLAT ENGINE GASKET |
| 7 | 500382574 | WASHER |
| 8 | 17046231 | NUT M20 |
| 9 | 17292281 | O-RING Ø126,59 MM SP=3,53 MM |
| 10 | 17281381 | O-RING Ø9,19 MM [FROM TO # 62977] |
