C87ENTX20.00A802

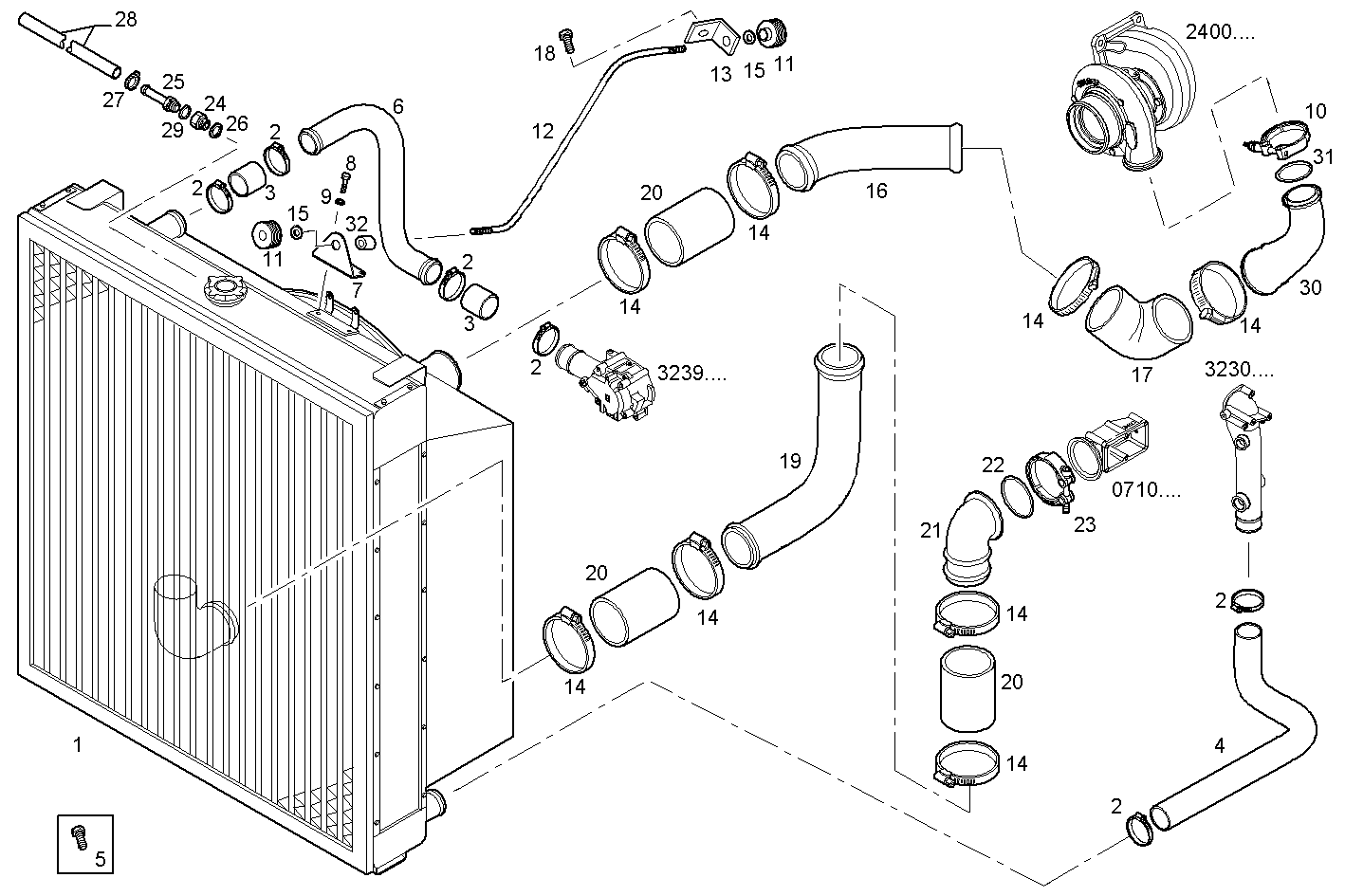

A22480513 RADIATOR 2 CIRCUITS AIR/WATER

Iveco/FPT RADIATOR 2 CIRCUITS AIR/WATER

Item Part number Description
1 8036038 WATER RADIATOR ASSY
2 17765091 CLIP Ø60/80 MM
3 98421391 RUBBER SLEEVE [UP TO 30-11-07]
4 8036521 RUBBER SLEEVE
5 16673635 HEXAGON BOLT M8X1.25X20
6 8044777 WATER PIPE
7 8019397 RETAINER
8 16605524 HEXAGON BOLT M8X20 MM
9 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
10 4800661 CLIP Ø 75 mm.
11 741569 RUBBER LUG
12 8045845 TIE ROD
13 8045844 RETAINER
14 17769391 CLIP
15 741570 WASHER Ø10X17 MM SP=2,3
16 8045560 AIR PIPE/DUCT
17 8043612 RUBBER SLEEVE
18 16588025 HEXAGON BOLT M12X30 MM
19 8044776 AIR PIPE/DUCT
20 8030531 TURBOCHARGER HOSE
21 8041915 CONNECTOR SLEEVE
22 17291281 O-RING Ø94,84 MM SP=3,53 MM
23 99435103 CLIP
24 4935727 PIPE SOCKET
25 4935134 OIL LINE
26 4858607 WASHER Ø12X17 MM SP=1,5 MM
27 18087993 CLIP Ø8/16 MM
28 8034635 BREATHER PIPE
29 10284460 SEAL GASKET Ø10X16 MM
30 61318365 AIR PIPE/DUCT
31 17284681 O-RING Ø61,6 MM SP=2,62 MM
32 741571 SPACING BAR Ø10X17 MM SP=2,3
