C87ENTX20.00A803

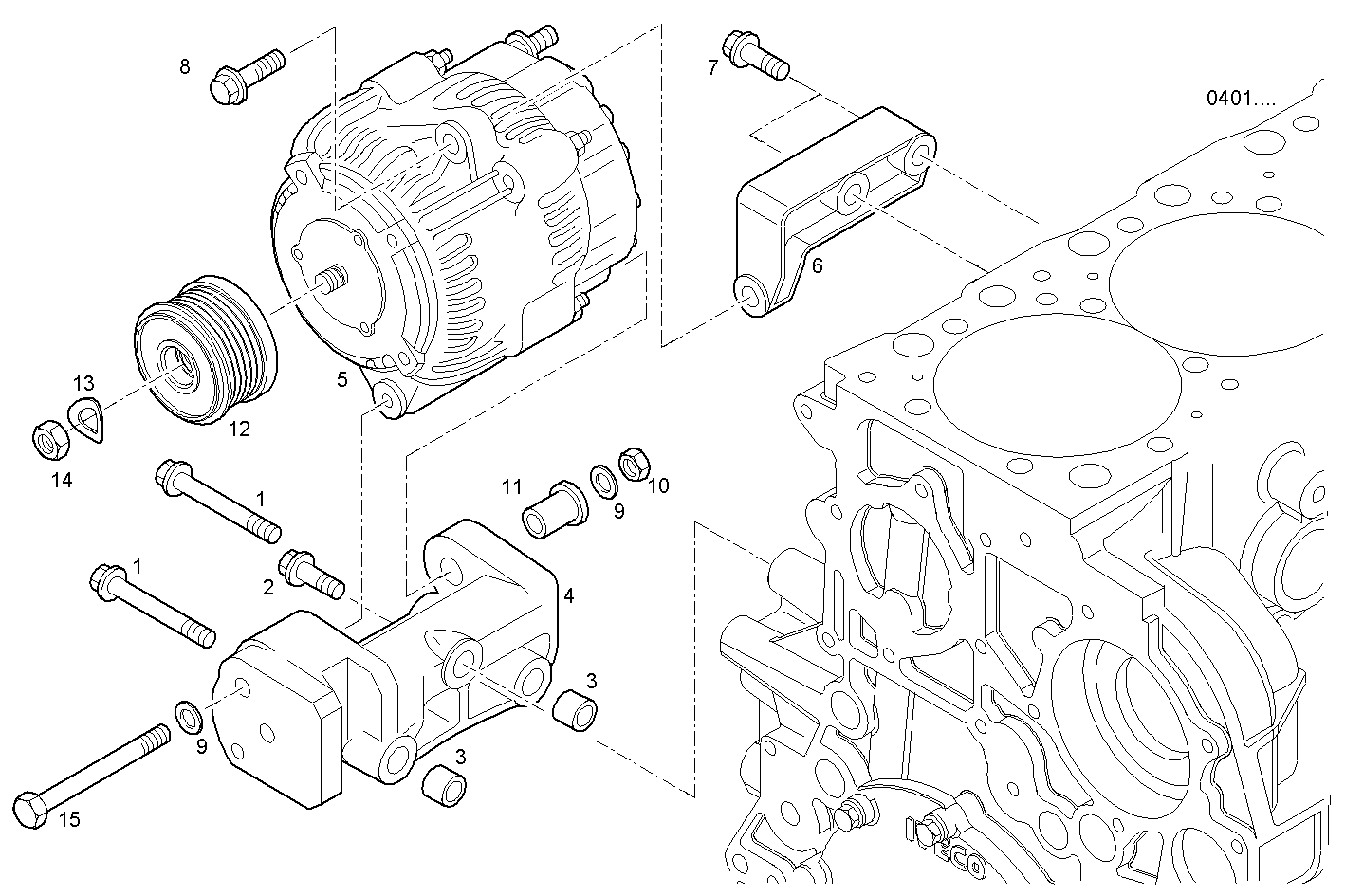

4000.211 GENERATOR
| Item | Part number | Description |
|---|---|---|
| 1 | 16676834 | HEXAGON BOLT M10X70 MM |
| 2 | 16675835 | HEXAGON BOLT M10X30 MM |
| 3 | 98405462 | DOWEL PIN Ø10,2 MM |
| 4 | 504164530 | GENERATOR SUPPORT LOWER |
| 5 | 504057813 | ALTERNATOR 140A - 14V |
| 6 | 8046769 | GENERATOR SUPPORT |
| 7 | 16673535 | HEXAGON BOLT M8X16 MM |
| 8 | 16607824 | HEXAGON BOLT M10X35 MM (8.8) |
| 9 | 17090174 | SPRING WASHER Ø10X20 MM |
| 10 | 17157125 | NUT M10x1.5 |
| 11 | 8046762 | SPACING BAR |
| 12 | 8046761 | GENERATOR PULLEY |
| 13 | 17095724 | WASHER Ø16 MM |
| 14 | 17043431 | NUT |
| 15 | 16599125 | HEXAGON BOLT M10X130 MM |
