C87ENTY22.00

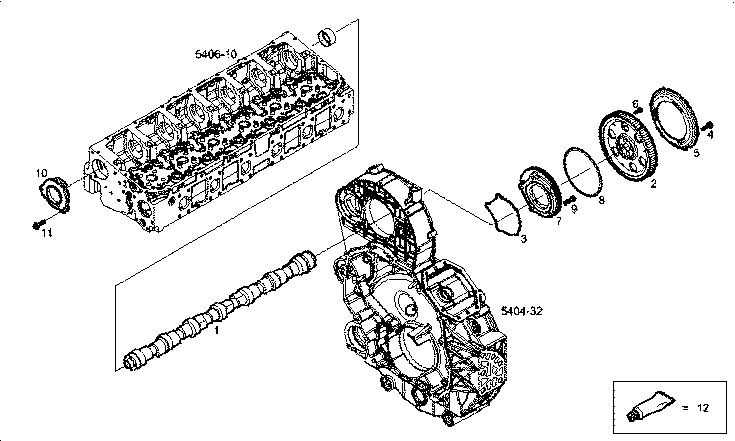

101473 TIMING - UP TO S/N: 25342

Iveco/FPT TIMING - UP TO S/N: 25342

Item Part number Description
1 504326209 CAMSHAFT
2 504385205 CAMSHAFT PINION
3 17290781 O-RING Ø78,97X3,53 MM
4 16676135 HEXAGON BOLT M10X45 MM
5 504378920 PLATE
6 504367230 HEXAGON BOLT M8X1,25
7 504127775 COVER REAR
8 17292381 O-RING Ø129,8 MM SP=3,53 MM
9 16586625 HEXAGON BOLT M8X35 MM
10 504360534 COVER FRONT
11 16690525 BANJO BOLT
12 2995644 ADHESIVE/STICKER
