C87ENTY22.00

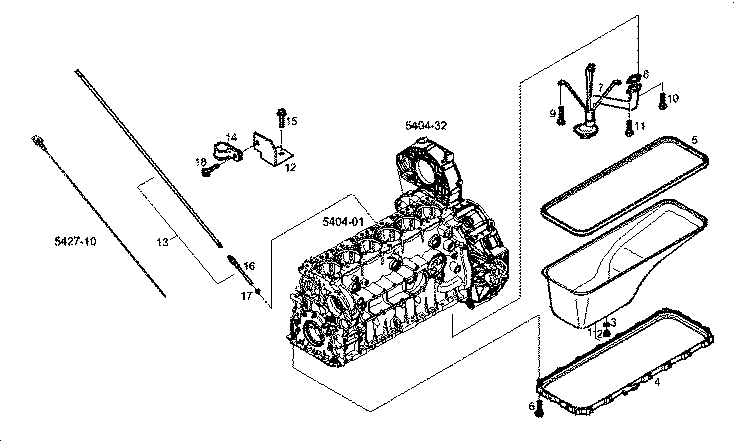

132191 ASSEMBLY-SUMP - A01020504 OIL SUMP

Iveco/FPT ASSEMBLY-SUMP - A01020504 OIL SUMP

Item Part number Description
1 504275032 OIL SUMP
2 16992611 THREADED PLUG M22X1,5
3 16508460 WASHER 22x27x1,5
4 504143828 SPACING BAR
5 504346309 OIL SUMP GASKET
6 16587525 HEXAGON BOLT M10X45 MM
7 504155793 SUCTION STRAINER
8 504149689 FLAT ENGINE GASKET
9 16692124 CYLIND-HEAD SCREW M10X25 MM (8.8)
10 16592225 HEXAGON BOLT M8X55 MM
11 16673635 HEXAGON BOLT M8X1.25X20
12 4791406 RETAINER
13 504323917 OIL LEVEL TUBE
14 17316699 PIPE CLIP Ø14 MM
15 16586225 HEXAGON BOLT M8X1,25X16 MM
16 504323023 THREADED UNION
17 99489020 SEAL GASKET Ø18X26 MM SP=1,5 MM
18 16707034 CYLIND-HEAD SCREW M8X16 MM
