C87ENTY22.00

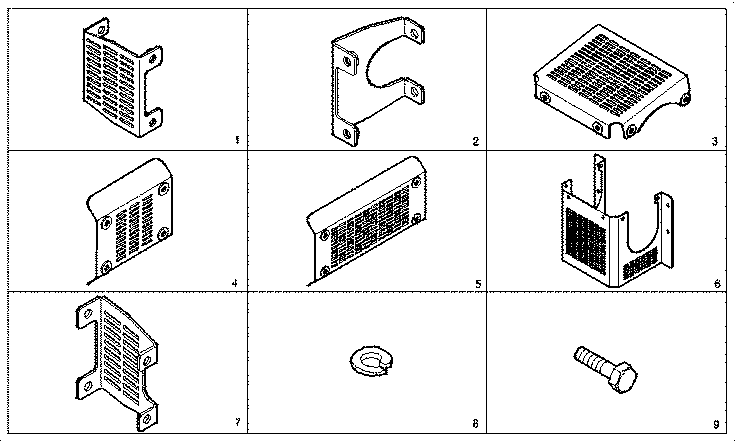

132281 SHIELDS - OPTION A48040507
| Item | Part number | Description |
|---|---|---|
| 1 | 8037196 | PROTECTION |
| 2 | 8045589 | PROTECTION |
| 3 | 8044970 | PROTECTION |
| 4 | 8045587 | PROTECTION |
| 5 | 8045585 | PROTECTION |
| 6 | 8044963 | PROTECTION |
| 7 | 8044948 | PROTECTION |
| 8 | 17089774 | SPRING WASHER Ø8,4X22 MM SP=2,4 MM |
| 9 | 16605424 | SCREW M8X16 MM (8.8) |
