C87ENTY22.00

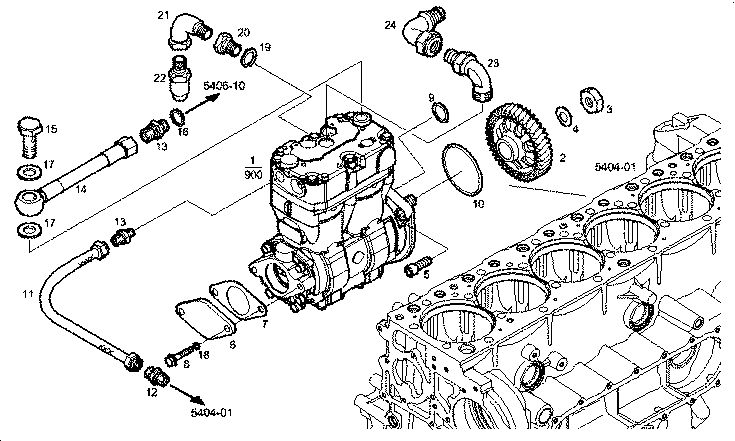

132421 AIR COMPRESSOR - OPTION A18130503 360CC

Iveco/FPT AIR COMPRESSOR - OPTION A18130503 360CC

Item Part number Description
1 504330145 AIR COMPRESSOR
2 504124646 COMP. DRIVE GEAR
3 99471892 HEXAGON NUT
4 17095914 WASHER
5 16693924 CYLIND-HEAD SCREW M12X35MM
6 8025369 PTO COVER
7 8025370 FLAT ENGINE GASKET
8 16691924 CYLIND-HEAD SCREW
9 17281381 O-RING Ø9,19 MM [FROM TO # 62977]
10 17292281 O-RING Ø126,59 MM SP=3,53 MM
11 504226680 WATER PIPE
12 504081277 THREADED UNION M18X1.5
13 504081274 THREADED UNION M16X1,5 - M18X1,5
14 504164149 WATER PIPE
15 504081280 BANJO BOLT M18X1,5
16 99489019 WASHER Ø16X24 MM SP=1,5 MM
17 98474311 SEAL GASKET Ø18X26 MM
18 17090174 SPRING WASHER Ø10X20 MM
19 16508060 SEAL GASKET Ø12X15,5 MM
20 99476542 THREADED UNION M12X1,5
21 98427977 ELBOW COUPLING M12X1,5
22 41285123 PIPE SOCKET
23 99456380 ELBOW COUPLING M26X1,5 - M36X2
24 504345042 AIR PIPE/DUCT
