C87ENTY22.00

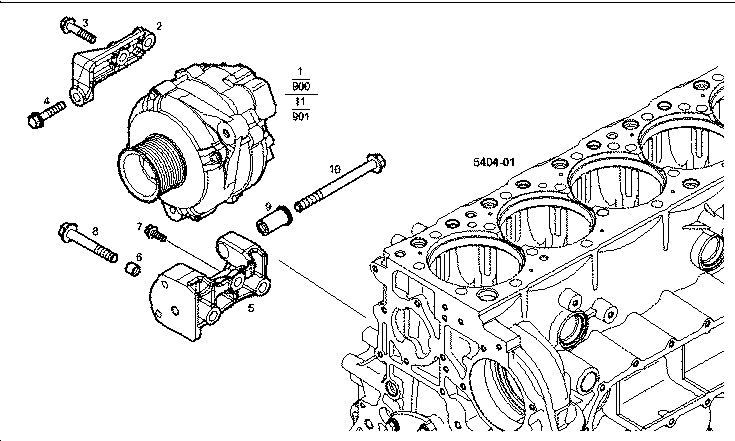

74974 ALTERNATOR
| Item | Part number | Description |
|---|---|---|
| 1 | 504065776 | ALTERNATOR ASSY |
| 2 | 504164534 | GENERATOR SUPPORT UPPER |
| 3 | 16673835 | HEXAGON BOLT M8X30 MM |
| 4 | 16586725 | HEXAGON BOLT M8X1.25X40 MM |
| 5 | 504164530 | GENERATOR SUPPORT LOWER |
| 6 | 98405462 | DOWEL PIN Ø10,2 MM |
| 7 | 16675835 | HEXAGON BOLT M10X30 MM |
| 8 | 16676834 | HEXAGON BOLT M10X70 MM |
| 9 | 99484032 | SPACER BUSH |
| 10 | 99474161 | SCREW M10 |
| 11 | 504286394 | ALTERNATOR ASSY |
