Catalogue Menu
C87ENTY22.00A001

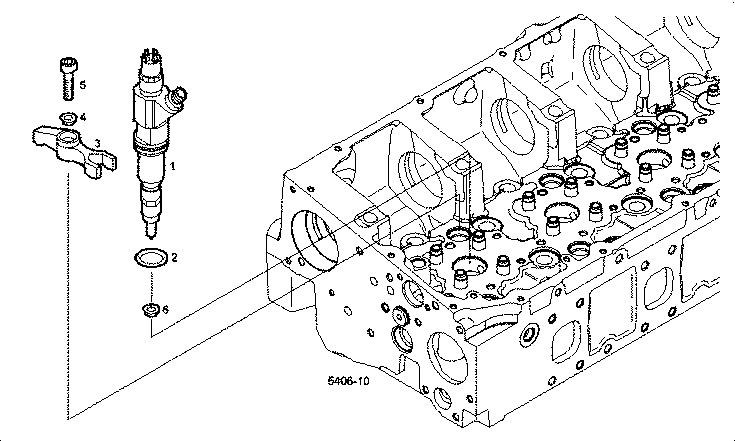

101600 INJECTOR
| Item | Part number | Description |
|---|---|---|
| 1 | 504255185 | ELECTRO INJECTOR |
| 2 | 17288881 | O-RING Ø28,1 MM SP=3,5 MM |
| 3 | 504127841 | FASTENING BRACKET |
| 4 | 4700162 | WASHER Ø11,5 MM |
| 5 | 500356756 | CYLIND-HEAD SCREW M10X1,5X40 MM |
| 6 | 504262598 | WASHER |
