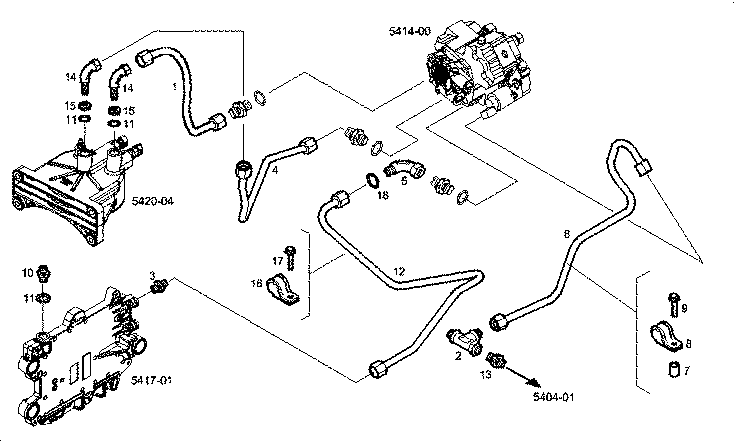

| Item |
Part number |
Description |
|
1 |
5801378904 |
FUEL LINE |
|
2 |
16504714 |
T-COUPLING |
|
3 |
41031568 |
THREADED UNION M16X1,5 |
|
4 |
5801368948 |
FUEL LINE |
|
5 |
16504015 |
ELBOW COUPLING M16X1,5 |
|
6 |
504354070 |
FUEL LINE |
|
7 |
8580153 |
SPACING BAR |
|
8 |
99431539 |
PIPE CLIP VALEO 10"1/2 |
|
9 |
16708734 |
CYLIND-HEAD SCREW |
|
10 |
504081274 |
THREADED UNION M16X1,5 - M18X1,5 |
|
11 |
98474309 |
WASHER Ø16X24 MM SP=1,9 MM |
|
12 |
5801368939 |
FUEL LINE |
|
13 |
41031567 |
THREADED UNION M14X1,5 - M16X1,5 |
|
14 |
42191125 |
ELBOW COUPLING |
|
15 |
16508811 |
NUT M16X1,5 |
|
16 |
17316499 |
CLIP |
|
17 |
16597925 |
HEXAGON BOLT M8X14 MM |
|
18 |
16510140 |
CLAMPING WASHER DIAM=10 MM |
