C87ENTY22.00A001

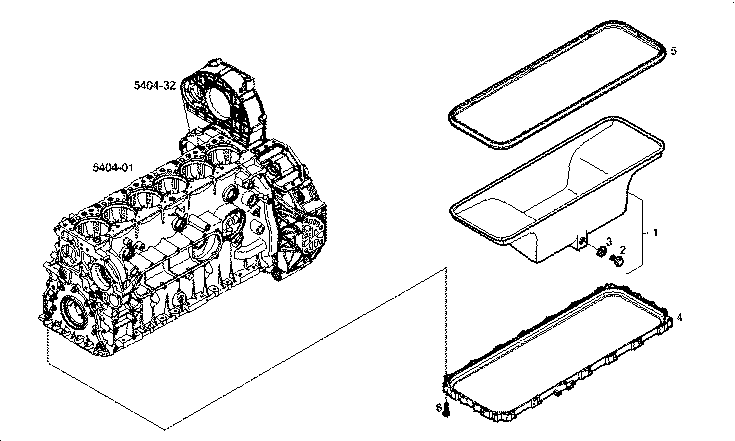

149107 ASSEMBLY-SUMP
| Item | Part number | Description |
|---|---|---|
| 1 | 5801367986 | ENGINE OIL SUMP ASSY |
| 2 | 16992611 | THREADED PLUG M22X1,5 |
| 3 | 16508460 | WASHER 22x27x1,5 |
| 4 | 504143828 | SPACING BAR |
| 5 | 5801541760 | OIL SUMP GASKET |
| 6 | 16587525 | HEXAGON BOLT M10X45 MM |
