C87ENTY22.00A001

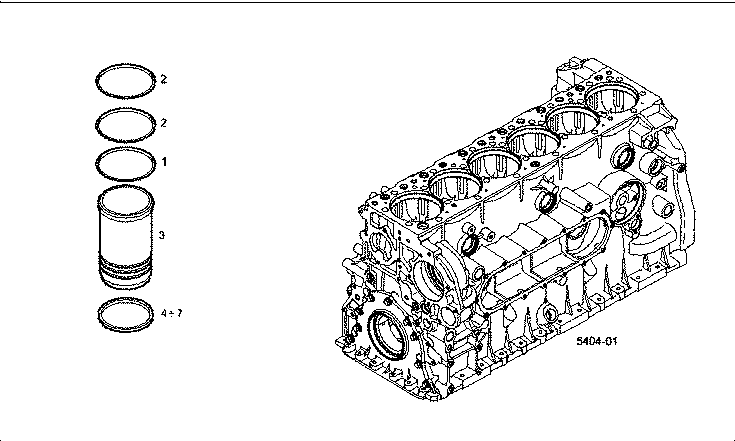

74114 CYLINDER LINE ASSEMBLY
| Item | Part number | Description |
|---|---|---|
| 1 | 99459175 | O-RING Ø120,24 MM SP=3,53 |
| 2 | 99459176 | O-RING Ø120,24 MM SP=3,53 |
| 3 | 504305869 | CYLINDER LINER |
| 4 | 504128648 | SPAC.RING CYL.LIN. SP=0,08 MM |
| 5 | 504128649 | SPAC.RING CYL.LIN. SP=0,1 MM |
| 6 | 504128650 | SPAC.RING CYL.LIN. SP=0,12 MM |
| 7 | 504128651 | SPAC.RING CYL.LIN. SP=0,14 MM |
