C87ENTY22.00A001

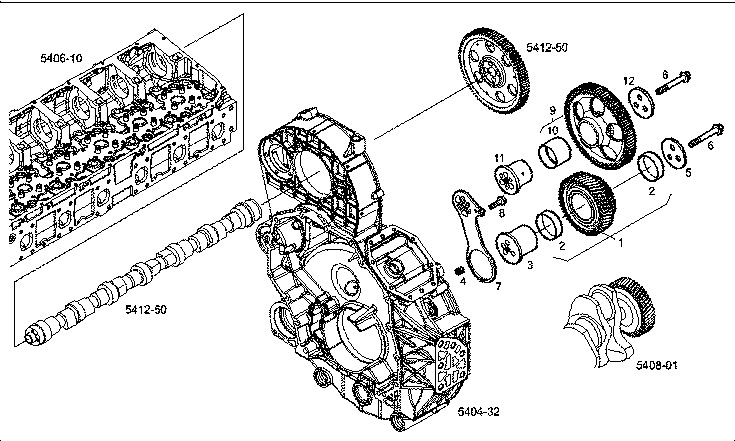

74375 GEAR DRIVE
| Item | Part number | Description |
|---|---|---|
| 1 | 504124648 | GEAR |
| 2 | 504001674 | BUSH |
| 3 | 504127832 | PIN |
| 4 | 504002500 | DOWEL PIN |
| 5 | 504128376 | STOP WASHER |
| 6 | 16679034 | HEXAGON BOLT M12X90 MM |
| 7 | 504126996 | RETAINER |
| 8 | 500356757 | HEXAGON BOLT |
| 9 | 504124654 | GEAR |
| 10 | 99432141 | BUSH |
| 11 | 504133017 | PIN |
| 12 | 99483931 | STOP WASHER |
