CURSOR10TE1D.X001

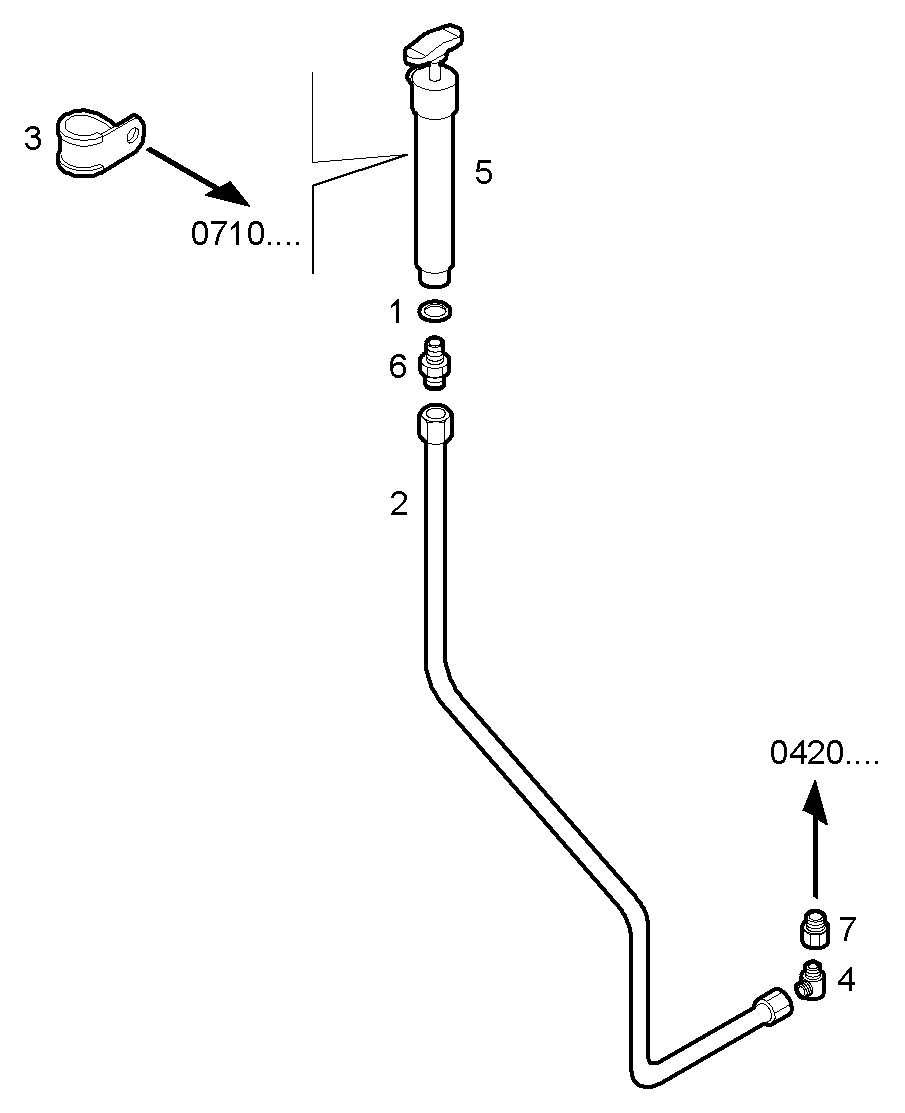

A49010507 OIL OUTLET PUMP
| Item | Part number | Description |
|---|---|---|
| 1 | 99489019 | WASHER Ø16X24 MM SP=1,5 MM |
| 2 | 8042803 | OIL LINE |
| 3 | 8038555 | FASTENING BRACKET |
| 4 | 8030711 | PIPE SOCKET M18X1,5/M16X1,5 |
| 5 | 8019921 | HAND PUMP |
| 6 | 504081274 | THREADED UNION M16X1,5 - M18X1,5 |
| 7 | 4935200 | PIPE SOCKET M22X1,5/M16X1,5 |
