CURSOR10TE1F.S550

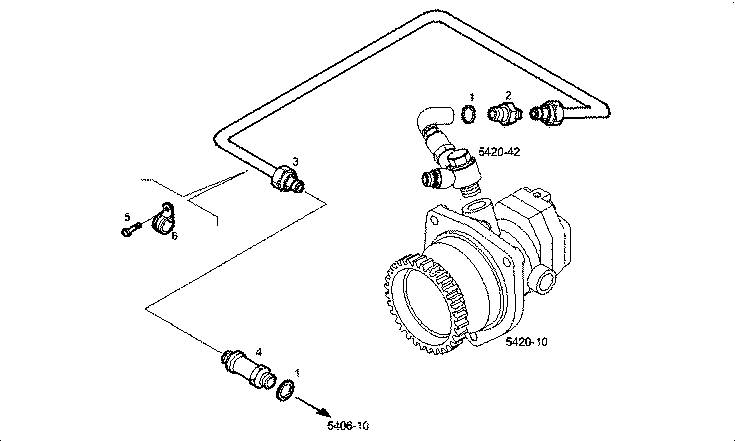

103167 FUEL RETURN PIPE TO PUMP
| Item | Part number | Description |
|---|---|---|
| 1 | 99489019 | WASHER Ø16X24 MM SP=1,5 MM |
| 2 | 504081274 | THREADED UNION M16X1,5 - M18X1,5 |
| 3 | 504200577 | FUEL LINE |
| 4 | 500310076 | PIPE SOCKET M16X1,5 - M18X1,5 |
| 5 | 16597925 | HEXAGON BOLT M8X14 MM |
| 6 | 17316592 | PIPE CLIP |
