CURSOR10TE1F.S550

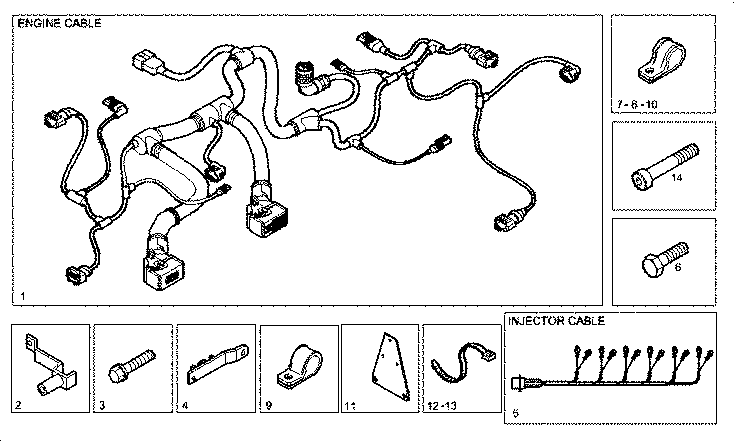

103188 ENGINE CABLE
| Item | Part number | Description |
|---|---|---|
| 1 | 504122099 | SET OF WIRING |
| 2 | 504020897 | FASTENING BRACKET |
| 3 | 16673835 | HEXAGON BOLT M8X30 MM |
| 4 | 16596925 | HEXAGON BOLT |
| 5 | 504132611 | WIRE/CABLE FOR INJECTORS |
| 6 | 11612224 | HEXAGON BOLT M6X12 MM |
| 7 | 17310501 | FASTENING BRACKET Ø10 MM |
| 8 | 17310401 | FASTENING BRACKET Ø8 MM |
| 9 | 17315490 | PIPE CLIP |
| 10 | 17310001 | FASTENING BRACKET Ø4 MM |
| 11 | 504067009 | RETAINER |
| 12 | 504023286 | CABLE STRAP |
| 13 | 99455033 | CLIP |
| 14 | 16689424 | SOCKET-HEAD SCREW M6X30 MM |
