CURSOR10TE1F.S550

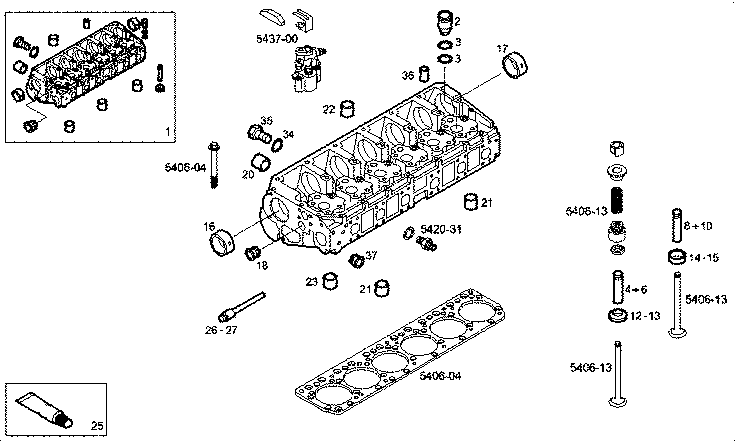

128526 CYLINDER HEAD-COVERS

Iveco/FPT CYLINDER HEAD-COVERS

Item Part number Description
1 5801478431 CYLINDER HEAD ASSY
2 99476929 NOZZLE HOLDER SEAT
3 17279081 O-RING Ø26,7 MM SP=1,7 MM
4 500391479 VALVE GUIDE INTAKE
5 500391480 VALVE GUIDE +0,2 INTAKE
6 500391481 VALVE GUIDE +0,4 INTAKE
8 500391476 VALVE GUIDE EXHAUST
9 500391477 VALVE GUIDE +0,2 EXHAUST
10 500391478 VALVE GUIDE +0,4 EXHAUST
12 99466613 VALVE SEAT STD. INTAKE
13 500379595 VALVE SEAT +0.20 INTAKE
14 99466612 VALVE SEAT STD. EXHAUST
15 500379597 VALVE SEAT +0.20 EXHAUST
16 504078222 BUSH
17 504078223 BUSH
18 504051237 THREADED PLUG DIAM=1/4"
20 504344694 PLUG Ø25 MM
21 16991370 LOCK PLUG Ø45 MM
22 16990870 LOCK PLUG Ø28 MM
23 14282170 LOCK PLUG Ø20 MM
25 2995644 ADHESIVE/STICKER
26 504138062 PLUG Ø10 MM
27 504138060 LOCK PLUG [FROM # 59639]
34 99489019 WASHER Ø16X24 MM SP=1,5 MM
35 16992415 THREADED PLUG M16X1,5
36 17255674 DOWEL PIN Ø5 MM [FROM # 76547]
37 504182706 THREADED PLUG [FROM # 76547]
