CURSOR10TE1F.S550

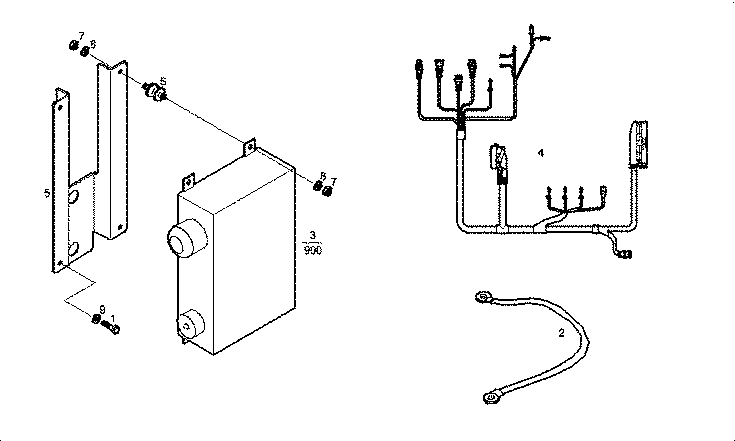

129757 ENGINE CABLE
| Item | Part number | Description |
|---|---|---|
| 1 | 16614524 | HEXAGON BOLT M16X35 MM |
| 2 | 8031723 | EARTH WIRE L=250 MM - FOR SEA WATER ADAPT. |
| 3 | 503115095 | SWITCHGEAR |
| 4 | 503113973 | ENGINE HARNESS |
| 5 | 503112011 | FASTENING BRACKET |
| 6 | 4910949 | RUBBER LUG |
| 7 | 17152725 | NUT M6 |
| 8 | 17094724 | WASHER Ø6X12 MM |
| 9 | 17092174 | SPRING WASHER Ø16X32X3,4 |
