CURSOR10TE1F.S550

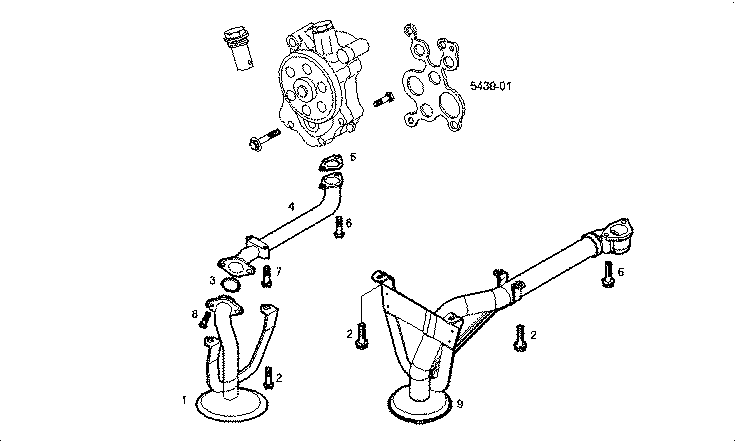

1907 SUCTION STRAINER
| Item | Part number | Description |
|---|---|---|
| 1 | 500382437 | OIL SUCTION PIPE [UP TO # 76287] |
| 2 | 504003976 | CYLIND-HEAD SCREW M8X1,25X16 MM |
| 3 | 17289481 | O-RING Ø37,69 MM SP=3,53 MM |
| 4 | 99485384 | OIL LINE [UP TO # 76287] |
| 5 | 500343518 | FLAT ENGINE GASKET |
| 6 | 16592224 | HEXAGON BOLT M8X55 MM |
| 7 | 16592324 | HEXAGON BOLT M8X60 MM |
| 8 | 16586524 | HEXAGON BOLT M8X30 MM |
| 9 | 504021761 | OIL SUCTION PIPE [FROM # 76288] |
