CURSOR10TE1F.S550

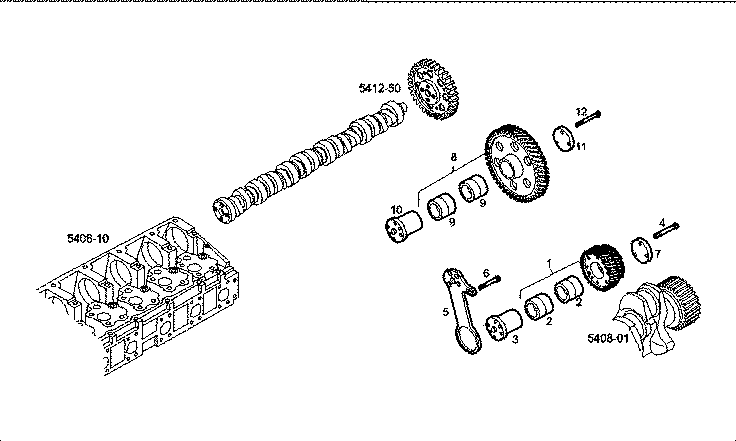

37798 GEAR DRIVE
| Item | Part number | Description |
|---|---|---|
| 1 | 500304186 | CAMSHAFT PINION |
| 2 | 98475174 | BUSH |
| 3 | 500304182 | FLANGED HUB |
| 4 | 16679034 | HEXAGON BOLT M12X90 MM |
| 5 | 500305483 | YOKE |
| 6 | 16586224 | HEXAGON BOLT M8X1,25X16 MM |
| 7 | 500305012 | STOP WASHER |
| 8 | 500305485 | CAMSHAFT PINION ASSY |
| 9 | 500310440 | BUSH |
| 10 | 500305484 | PIN |
| 11 | 504003307 | STOP WASHER |
| 12 | 16679234 | HEXAGON BOLT |
