CURSOR10TE1F.S550

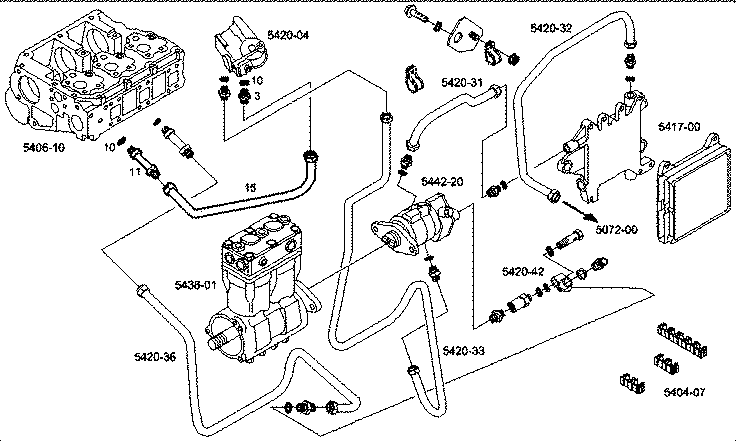

38031 PIPE FILTER TO CYLINDER HEAD
| Item | Part number | Description |
|---|---|---|
| 3 | 16500315 | THREADED UNION M16X1,5 - M18X1,5 |
| 10 | 99489019 | WASHER Ø16X24 MM SP=1,5 MM |
| 11 | 500310076 | PIPE SOCKET M16X1,5 - M18X1,5 |
| 15 | 504036044 | FUEL LINE |
