CURSOR10TE1F.S550

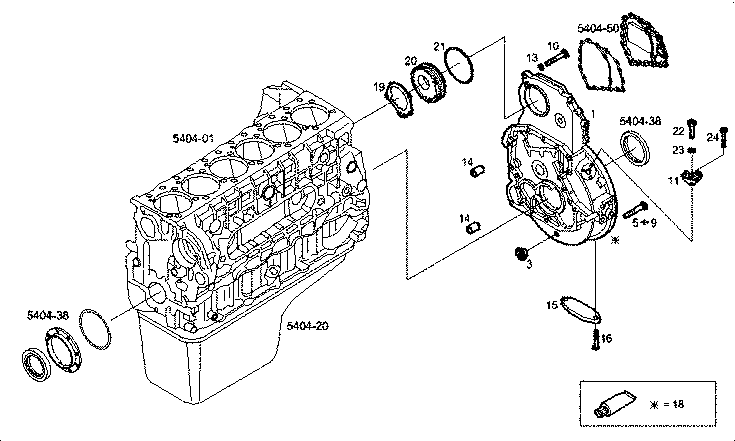

45790 REAR CRANKCASE COVER
| Item | Part number | Description |
|---|---|---|
| 1 | 500310414 | TIMINGGEAR HOUSIN |
| 3 | 504123677 | THREADED PLUG M 52X2 |
| 5 | 16593425 | HEXAGON BOLT M12X100 MM |
| 6 | 16677935 | HEXAGON BOLT |
| 7 | 16593625 | HEXAGON BOLT M12X120 MM |
| 8 | 99475978 | HEXAGON BOLT |
| 9 | 16588824 | HEXAGON BOLT M12X1,75X70 MM |
| 10 | 16675835 | HEXAGON BOLT M10X30 MM |
| 11 | 504113483 | SPACING BAR |
| 13 | 98474305 | WASHER Ø10X17 MM SP=2,3 |
| 14 | 17275610 | DOWEL PIN |
| 15 | 4851842 | COVER |
| 16 | 16673735 | HEXAGON BOLT M8X25 MM |
| 18 | 2995644 | ADHESIVE/STICKER |
| 19 | 99448739 | FLAT ENGINE GASKET |
| 20 | 500322294 | SPACER RING |
| 21 | 17292281 | O-RING Ø126,59 MM SP=3,53 MM |
| 22 | 504087515 | SHEAR SCREW |
| 23 | 16892924 | WASHER |
| 24 | 16588125 | HEXAGON BOLT M12X35 MM |
